Kubernetes for Microservices

Microservices architecture breaks applications into small, independent services. Kubernetes provides the tools to deploy, manage, and scale these services efficiently.

👉 Kubernetes helps run and manage microservices automatically.

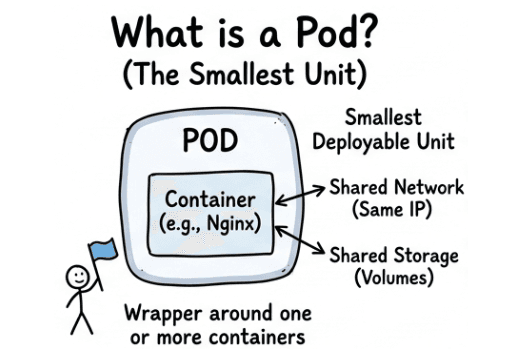

What is a Pod

A Pod is the smallest and most basic unit in Kubernetes. It represents a running instance of your application inside the cluster.

A Pod acts as a wrapper around one or more containers and provides them with a shared environment.

It can contain:

• One container (most common use case)
• Multiple containers (when they need to work closely together)

All containers inside a Pod share:

• Network → Same IP address and port space
• Storage → Shared volumes for data access

👉 This allows containers in the same pod to communicate easily.

Example

apiVersion: v1
kind: Pod
metadata:
  name: my-pod
spec:
  containers:
  - name: nginx
    image: nginx

👉 This configuration creates a Pod that runs a single nginx container.

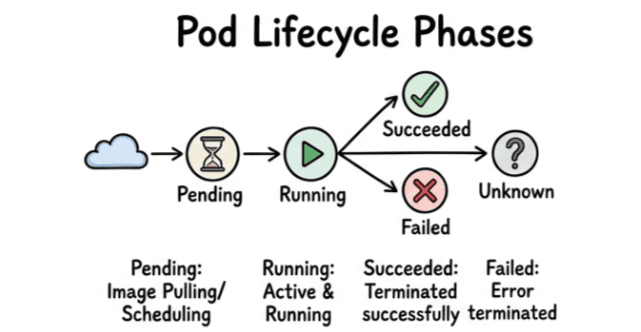

Pod Lifecycle

A Pod goes through different stages during its lifecycle, which represent its current state in the Kubernetes cluster.

Pod Lifecycle Phases:

• Pending → Pod is created but containers are not yet running (image pulling or scheduling in progress)
• Running → Pod is successfully running and containers are active
• Succeeded → Pod has completed its task successfully (mainly for batch jobs)
• Failed → One or more containers have terminated with an error
• Unknown → Kubernetes cannot determine the pod’s state (usually due to communication issues)

Difference Between Single vs Multi-Container Pods

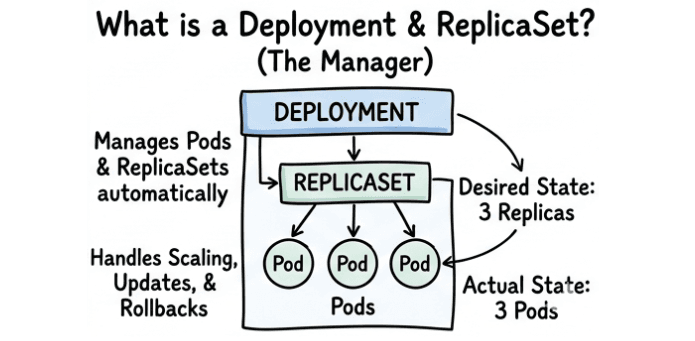

What is a Deployment

A Deployment is a Kubernetes resource used to manage, scale, and maintain pods automatically. It ensures that your application is always running in the desired state.

Instead of managing pods manually, you define the desired configuration, and Kubernetes handles the rest.

A Deployment helps with:

• Scaling applications → Increase or decrease the number of pods
• Updating applications → Perform rolling updates without downtime
• Maintaining desired state → Automatically replaces failed pods

Example

apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
spec:
  replicas: 2
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
      - name: nginx
        image: nginx

What This Configuration Does

• Creates a Deployment named my-app
• Runs 2 replicas (pods) of the application
• Uses the nginx container image
• Ensures pods always match the defined state

👉 If one pod crashes, Kubernetes automatically creates a new one.

Run the Deployment

kubectl apply -f deployment.yaml

ReplicaSet Explained

A ReplicaSet is a Kubernetes component that ensures a specified number of pod replicas are always running in the cluster.

It continuously monitors pods and maintains the desired count.

• Automatically replaces failed or deleted pods
• Ensures high availability of applications
• Works behind the scenes (usually managed by Deployments)

Example

apiVersion: apps/v1
kind: ReplicaSet
metadata:
  name: my-replicaset
spec:
  replicas: 2
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
      - name: nginx
        image: nginx

👉 This ensures 2 pods are always running.

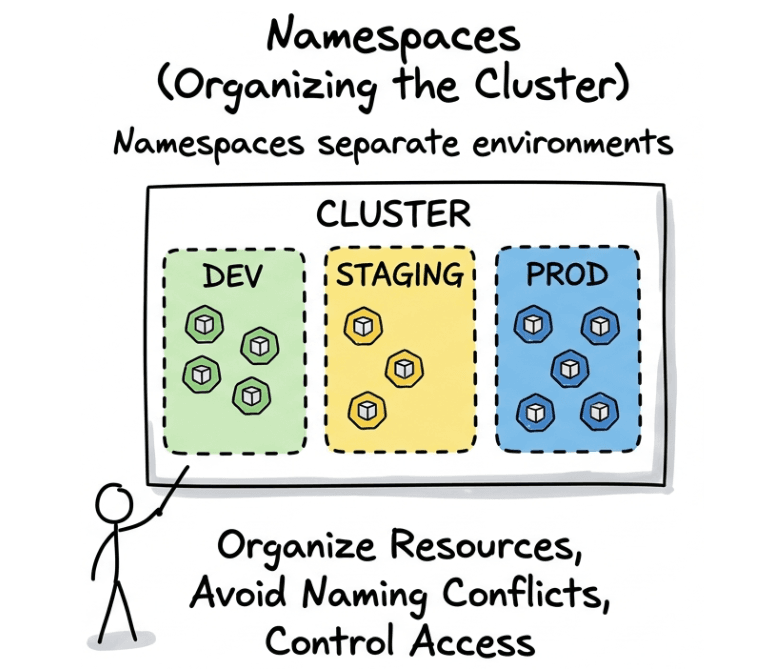

Namespaces

Namespaces are used to organize and separate resources inside a Kubernetes cluster.

They are useful for managing multiple environments within the same cluster.

Benefits:

• Separate environments (dev, test, prod)
• Avoid naming conflicts
• Better resource organization

Example : This creates a namespace named dev.

kubectl create namespace dev

👉 You can deploy resources inside a namespace:

kubectl apply -f deployment.yaml -n dev

Labels & Selectors

Labels are key-value pairs attached to Kubernetes objects to identify and organize them.

Selectors are used to filter and group resources based on labels.

Example

metadata:
  labels:
    app: my-app

👉 A Service or Deployment can use this label to find matching pods.

Annotations

Annotations are used to store additional metadata about Kubernetes objects.

Unlike labels:

• Not used for selection or grouping
• Used for extra information like descriptions, configs, or tool data

Example

metadata:
  annotations:
    description:"This is my app"

Microservices Deployment Pattern in Kubernetes

Kubernetes is well-suited for microservices architecture because it allows each service to run independently while still being managed as part of a larger system.

It enables:

• Each microservice to run in its own pod
• Independent scaling of each service
• Easy updates using rolling deployments
• Fault isolation (failure in one service does not affect others)

How It Works (Deployment Pattern)

In a typical microservices setup:

1. Each microservice is deployed as a Deployment
2. Each Deployment creates and manages its own pods
3. Services are used to expose and connect microservices
4. Kubernetes automatically handles scaling, load balancing, and failures

Conclusion

Kubernetes core concepts such as Pods, Deployments, ReplicaSets, and Namespaces form the foundation for building and managing microservices efficiently. These components work together to simplify application deployment, scaling, and maintenance in modern environments.

By using these concepts, developers can create systems that are not only easy to manage but also highly scalable and reliable.
