JPA Relationships

In JPA, entity relationships define how two or more entities are associated with each other. These annotations help map real-world relationships into database tables automatically, managing foreign keys and join tables without writing complex SQL. They are essential for building clean, maintainable, and scalable applications using Spring Data JPA and Hibernate.

---

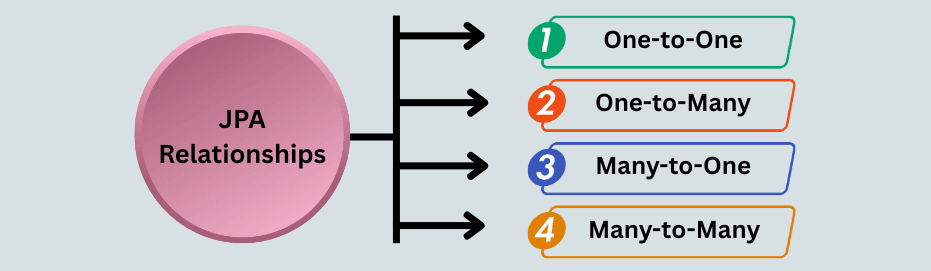

Types of JPA Relationships

JPA provides different types of relationships to represent how entities are connected in a relational database. These relationships help model real-world data associations directly in Java, while Hibernate/JPA manages foreign keys and joins automatically.

@OneToOne Relationship

Represents a relationship where one entity is linked to exactly one other entity.

Commonly used when data is split into separate tables for clarity or security, such as a User and Profile.

Example

@Entity
publicclassUser {

@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Long id;

private String name;

@OneToOne
@JoinColumn(name = "profile_id")// Foreign key in User table
private Profile profile;
}

@Entity
publicclassProfile {

@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Long id;

private String bio;
}

Key Points:

• @JoinColumn defines the foreign key column.
• Can be unidirectional or bidirectional.

Use Case:

User → Profile, Passport → Person.

---

@OneToMany Relationship

Defines a relationship where one parent entity is associated with multiple child entities.

This is typically used for collections, such as a User having many Orders.

Example

@Entity
publicclassUser {

@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Long id;

private String name;

@OneToMany(mappedBy = "user", cascade = CascadeType.ALL)
private List<Order> orders;
}

@Entity
publicclassOrder {

@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Long id;

private String product;

@ManyToOne
@JoinColumn(name = "user_id")// Foreign key
private User user;
}

Key Points:

• mappedBy specifies the owning side of the relationship.
• CascadeType.ALL propagates operations from parent to child.

Use Case:

User → Orders, Department → Employees.

---

@ManyToOne

Represents a relationship where many entities are associated with one parent entity.

This is the owning side of a One-to-Many relationship and always contains the foreign key.

Example Use Case: Many Orders → One User

@ManyToOne
@JoinColumn(name = "user_id")
private User user;

Key Points:

• Most commonly used relationship
• Always owns the foreign key
• Must be used with @JoinColumn

@ManyToMany Relationship

Represents a many-to-many association, where multiple instances of one entity relate to multiple instances of another.

Example

@Entity
publicclassStudent {

@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Long id;

private String name;

@ManyToMany
    @JoinTable(
        name = "student_course",
        joinColumns = @JoinColumn(name = "student_id"),
        inverseJoinColumns = @JoinColumn(name = "course_id")
    )
private List<Course> courses;
}

@Entity
publicclassCourse {

@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Long id;

private String title;

@ManyToMany(mappedBy = "courses")
private List<Student> students;
}

Key Points:

• @JoinTable defines the intermediate join table.
• joinColumns = foreign key for the current entity.
• inverseJoinColumns = foreign key for the other entity.

Use Case:

Students ↔ Courses, Authors ↔ Books.

---

@JoinColumn

Specifies the foreign key column for @OneToOne or @ManyToOne relationships.

Example:

@OneToOne
@JoinColumn(name = "profile_id")
private Profile profile;

Key Points:

• Can define name, referenced column, uniqueness, nullability.
• Always placed on the owning side of the relationship.

---

@JoinTable

Specifies the join table for @ManyToMany associations.

Example:

@ManyToMany
@JoinTable(
    name = "student_course",
    joinColumns = @JoinColumn(name = "student_id"),
    inverseJoinColumns = @JoinColumn(name = "course_id")
)
private List<Course> courses;

Key Points:

• Creates an intermediate table with foreign keys to both entities.
• Only used for many-to-many relationships.

---

Comparison Table of Relationships

Relationship	Annotation	Foreign Key Location	Example
One-to-One	@OneToOne	Either entity can own the foreign key	User → Profile
One-to-Many	@OneToMany	Foreign key is stored in the child entity	User → Orders
Many-to-One	@ManyToOne	Foreign key is always on the “many” side	Orders → User
Many-to-Many	@ManyToMany	Stored in a separate join table	Student ↔ Course

---

Best Practices

• Always define the owning side clearly to avoid mapping errors.
• Use CascadeType carefully to propagate operations.
• For bidirectional relationships, always use mappedBy on the inverse side.
• Keep join tables and foreign keys consistent for performance and clarity.

---

Conclusion

JPA relationship annotations (@OneToOne, @OneToMany, @ManyToMany) along with @JoinColumn and @JoinTable allow developers to:

• Map real-world associations directly in Java classes.
• Handle foreign keys and join tables automatically.
• Simplify CRUD operations and queries.
• Maintain clean, readable, and maintainable ORM-based code.

These annotations form the backbone of Spring Data JPA and Hibernate entity relationships, enabling robust, scalable, and enterprise-ready applications.
