Advanced Data Mapping

Modern applications often deal with flexible, dynamic, or semi-structured data such as user preferences, metadata, configurations, and external API responses.

Storing such data in fixed relational columns can be restrictive and lead to unnecessary schema complexity.

This is where JSON data mapping becomes useful.

Spring Boot + JPA, together with database support (especially PostgreSQL), allows you to store and read JSON objects directly from database columns while still working with Java objects.

---

What is JSON / JSONB?

JSON

• A text-based data format used to store structured and semi-structured data.
• Stored in the database as plain text, exactly as provided.
• Supported by multiple databases such as PostgreSQL, MySQL, and Oracle.
• Easy to read and write, but slower for querying and filtering.
• Limited indexing support, which can impact performance for large datasets.

JSONB (PostgreSQL)

• A binary-optimized JSON format provided by PostgreSQL.
• Stored in a parsed binary form, not as raw text.
• Provides faster querying, filtering, and processing.
• Supports powerful GIN and GiST indexes for high-performance searches.
• Automatically removes duplicate keys.
• Does not preserve key order, focusing on performance rather than formatting.

---

JSON vs JSONB (PostgreSQL)

Feature	JSON	JSONB
Storage	Stored as plain text	Stored in optimized binary format
Query Performance	Slower, needs parsing on each query	Faster, parsed once and reused
Index Support	Limited indexing support	Excellent indexing (GIN / GiST)
Ordering Preserved	Yes, key order is preserved	No, key order is not preserved
Duplicate Keys	Allowed	Removed automatically
Recommended Usage	Rarely used	Preferred for most use cases

---

Why Use JSON Mapping?

JSON mapping helps when:

• Data structure varies across records
• Schema changes frequently
• Fields are optional or dynamic

Common Use Cases

• User preferences or settings
• Metadata or additional attributes
• Feature flags and configurations
• Audit snapshots (before/after state)
• Storing external API responses
• Multi-tenant configurations

---

When NOT to Use JSON

Avoid JSON for:

• Core business or transactional data
• Frequently joined relational data
• Financial or highly constrained fields
• Fields used heavily in filtering and sorting

---

Basic JSONB Mapping Using Hibernate Types

Hibernate Types is the recommended and industry-standard approach for mapping JSON / JSONB columns in Spring Boot + JPA applications.

Step 1: Add Dependency

<dependency>
<groupId>com.vladmihalcea</groupId>
<artifactId>hibernate-types-60</artifactId>
<version>2.21.1</version>
</dependency>

Why this library?

• Provides native support for JSON / JSONB
• Eliminates manual serialization logic
• Works seamlessly with Spring Boot + Hibernate
• Widely used in production systems

---

Step 2: Entity Mapping with JSONB

@Entity
@TypeDef(name = "json", typeClass = JsonType.class)
@Table(name = "users")
publicclassUser {

@Id
@GeneratedValue
private Long id;

private String name;

@Type(type = "json")
@Column(columnDefinition = "jsonb")
private Map<String, Object> preferences;
}

Key Points:

• @TypeDef registers a reusable JSON type
• @Column(columnDefinition = "jsonb") ensures PostgreSQL uses JSONB
• Supports nested objects, arrays, and dynamic structures
• No need for ObjectMapper or converters

---

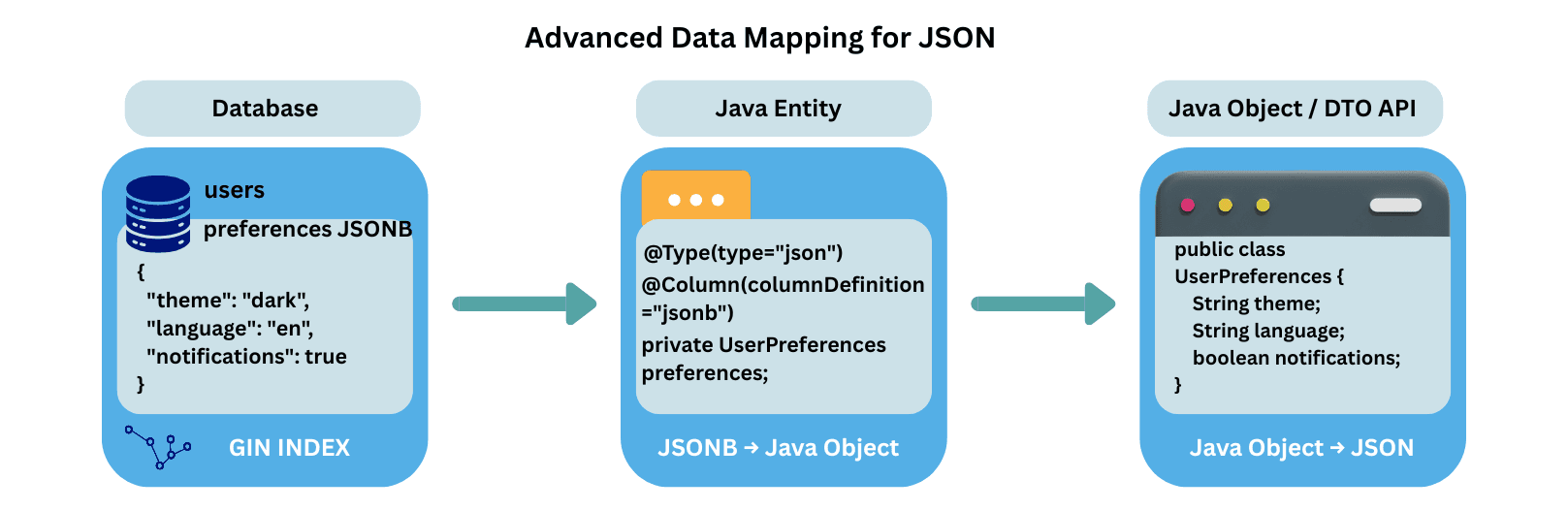

What Happens Internally?

• Persist: Java object → automatically serialized to JSON
• Database: JSON stored efficiently as JSONB
• Fetch: JSONB → automatically deserialized back to Java object

---

Example JSON Stored in DB

{
"theme":"dark",
"language":"en",
"notifications":true
}

---

Using a Custom POJO Instead of Map

When the JSON structure is known or stable, using a custom POJO is the best practice instead of Map<String, Object>.

---

POJO Example

publicclassUserPreferences {

private String theme;
private String language;
privateboolean notifications;

// getters and setters
}

---

Entity Field Mapping

@Type(type = "json")
@Column(columnDefinition = "jsonb")
private UserPreferences preferences;

---

Why This Approach Is Better

• Type-safe – prevents invalid keys or values
• Readable & self-documenting code
• Compile-time checks instead of runtime errors
• Easier refactoring and maintenance
• IDE support (auto-complete, validation)

---

Using @Converter (JPA Standard Approach)

The @Converter approach is the pure JPA-standard way to store JSON in the database.

It works with any JPA provider (Hibernate, EclipseLink, etc.), but offers less type safety compared to Hibernate JSON types.

---

JSON Converter Implementation

@Converter
publicclassJsonConverterimplementsAttributeConverter<Object, String> {

privatefinalObjectMappermapper=newObjectMapper();

@Override
public StringconvertToDatabaseColumn(Object attribute) {
try {
return mapper.writeValueAsString(attribute);
        }catch (Exception e) {
thrownewRuntimeException("Error converting object to JSON", e);
        }
    }

@Override
public ObjectconvertToEntityAttribute(String dbData) {
try {
return mapper.readValue(dbData, Object.class);
        }catch (Exception e) {
thrownewRuntimeException("Error converting JSON to object", e);
        }
    }
}

---

Using the Converter in Entity

@Convert(converter = JsonConverter.class)
@Column(columnDefinition = "jsonb")
private Object metadata;

---

Pros & Cons

Pros

• Compatible with any JPA provider (Hibernate, EclipseLink, etc.)
• No need for external libraries
• Full control over JSON serialization and deserialization

Cons

• Requires manual serialization and deserialization
• Less type-safe, as data is usually handled as Object
• More difficult to refactor, validate, and maintain over time

---

Querying JSONB Data

PostgreSQL Native Query Example

@Query(
  value = "SELECT * FROM users WHERE preferences ->> 'language' = 'en'",
  nativeQuery = true
)
List<User>findEnglishUsers();

• Uses PostgreSQL JSONB operators (->>)
• Allows powerful filtering on nested JSON fields
• Suitable for complex, dynamic JSON structures

---

Indexing JSONB for Performance

CREATE INDEX idx_users_preferences
ON usersUSING GIN (preferences);

Why a GIN Index Is Important

• Dramatically improves JSONB query performance
• Essential for large tables and high-traffic systems
• Enables fast key-value lookups inside JSON documents
• Makes JSON-based filtering production-ready

? Without proper indexing, JSONB queries can become a performance bottleneck.

---

JSON Mapping with DTO Projections

JSON fields integrate cleanly with DTO projections, keeping APIs efficient and secure:

publicinterfaceUserView {
    StringgetName();
    UserPreferencesgetPreferences();
}

Benefits

• Faster and lighter API responses
• Prevents direct entity exposure
• Clear separation between persistence and API layers
• Works seamlessly with JSONB-mapped fields

---

JSON + Auditing (Advanced Use Case)

Auditing annotations work naturally alongside JSON fields:

@LastModifiedDate
private LocalDateTime updatedAt;

Storing Audit Snapshots

@Column(columnDefinition = "jsonb")
private Map<String, Object> changeLog;

Useful For

• Compliance and regulatory audits
• Debugging and tracing state changes
• Capturing before/after snapshots
• Maintaining historical records of entity updates

---

JSON Mapping vs Relational Mapping

Aspect	JSON / JSONB	Relational Columns
Schema flexibility	High – supports dynamic, schema-less data	Low – fixed schema, changes require migrations
Query performance	Medium → High when indexed (GIN indexes for JSONB)	High – optimized for traditional SQL queries
Type safety	Medium – may require custom DTOs or Maps	High – enforced by database types and JPA mapping
Best use case	Flexible attributes, user preferences, metadata, dynamic configs	Core business fields, transactional data, relationships

---

Common Pitfalls

• Overusing JSON for relational data
• Missing GIN indexes on JSONB
• Storing huge JSON objects
• Keeping frequently queried fields only inside JSON
• Using Map<String, Object> everywhere

---

Best Practices

• Prefer JSONB over JSON in PostgreSQL
• Use typed POJOs instead of raw maps
• Add GIN indexes for JSONB columns
• Keep core business fields as normal columns
• Use JSON for metadata, preferences, and dynamic data
• Combine JSON mapping with DTO projections and auditing

---

Conclusion

Advanced JSON / JSONB mapping enables Spring Boot applications to handle flexible and evolving data models without sacrificing maintainability.

By using JSONB, Hibernate Types, proper indexing, and typed Java objects, you achieve the best balance of performance, flexibility, and clarity—making JSON mapping a powerful tool for modern, enterprise-grade applications.
