Docker Architecture Explained

Now that you understand Docker basics like images and containers, let’s see how everything works together inside Docker architecture.

What is Docker Architecture?

Docker architecture defines how different Docker components work together to build, ship, and run containers efficiently.

It is based on a client-server model, where different parts of Docker communicate with each other to perform tasks.

In this model:

• The Docker Client sends commands (like docker run, docker build)
• The Docker Engine (Daemon) receives and processes those commands
• It then creates and manages containers using Docker images

👉 In simple words: Docker architecture explains how your command turns into a running container.

Main Components of Docker Architecture

1. Docker Client

The Docker Client is the interface you use to interact with Docker and execute commands.

It runs commands such as:

• docker build → Builds a Docker image from a Dockerfile
• docker pull → Downloads an image from a Docker registry
• docker run → Creates and starts a container from an image

It sends requests to the Docker Daemon through the REST API.

Example (Command Line)

docker build -t my-app .
docker pull nginx
docker run -p 8080:80 nginx

When you run docker run nginx, the Docker Client sends this command to the Docker Engine, which then processes it and starts a container.

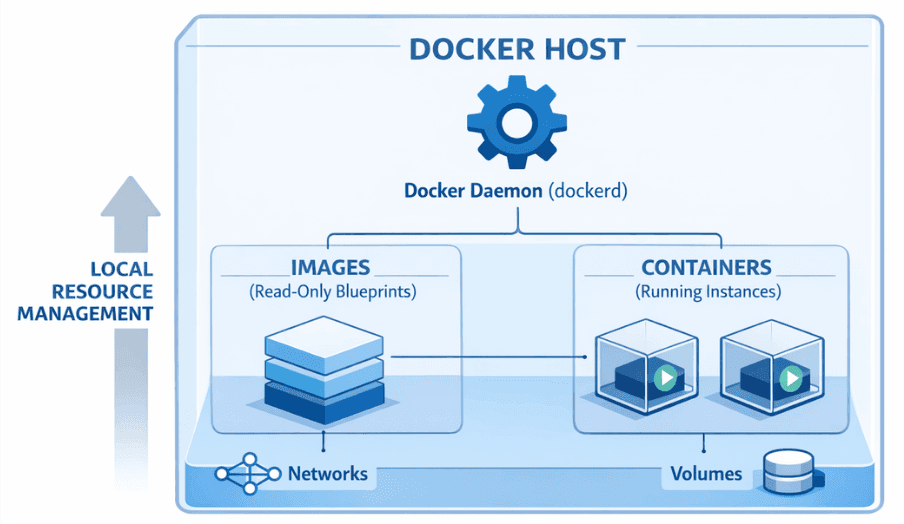

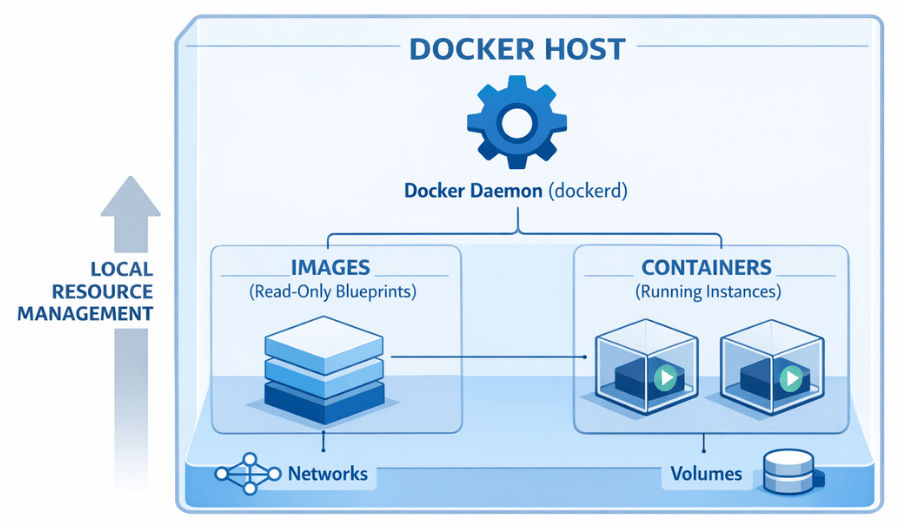

2. Docker Host (Docker Engine)

The Docker Host is the system (physical or virtual machine) where Docker is installed and runs all container-related operations.

It acts as the main environment that manages and stores Docker resources.

It includes:

• Docker Daemon → The core service that manages containers and images
• Containers → Running instances of applications
• Images → Read-only templates used to create containers
• Networks → Used for communication between containers
• Volumes → Used for persistent data storage

👉 It is the environment where all Docker operations are executed.

Example (Real-World View):

When you run a container:

docker run nginx

What happens on Docker Host:

• Docker Daemon receives the request
• It checks if nginx image is available
• If not, it pulls from Docker Hub
• Then it creates and runs a container inside the host system

3. Docker Daemon

The Docker Daemon (dockerd) is the core background service of Docker that runs on the Docker Host.

It is responsible for receiving commands from the Docker Client and performing all Docker operations.

It performs tasks such as:

• Listens to Docker API requests coming from the Docker Client
• Builds Docker images from Dockerfiles
• Creates, runs, and manages containers
• Handles networking between containers
• Manages storage and volumes

👉 In simple words: The Docker Daemon is the engine that does all the actual work in Docker architecture.

Example (How it works in real life)

When you run:

docker run nginx

• Docker Client sends request to Docker Daemon
• Daemon checks if the image exists locally
• If not, it pulls the image from Docker Hub
• Then it creates and starts a container

Example Commands (Useful for understanding Daemon activity)

docker ps

Shows containers currently managed by Docker Daemon

docker images

Shows images stored and managed by Docker Daemon

docker logs container_id

Shows logs of containers running under Docker Daemon

4. Docker Images

Docker Images are read-only templates used to create containers.

They act as a blueprint of an application, which includes everything needed to run the app.

Docker images:

• Contain application code + dependencies
• Include runtime (Java, Node, Python, etc.)
• Are built using a Dockerfile
• Are stored in layers (each instruction creates a new layer)
• Are immutable (cannot be changed once created)

👉 Think of it as a blueprint that is used to create running containers.

Example (Pulling an Image)

docker pull nginx

👉 This command downloads the nginx image from Docker Hub to your local system.

Example (Listing Images)

docker images

👉 This shows all Docker images available on your system.

Example (Using Image to Run Container)

docker run nginx

👉 This creates a container from the nginx image and runs it.

Dockerfile Example (How Image is Built)

FROM openjdk:21
WORKDIR /app
COPY target/app.jar app.jar
ENTRYPOINT ["java","-jar","app.jar"]

👉 This Dockerfile is used to build a Docker image for a Spring Boot application.

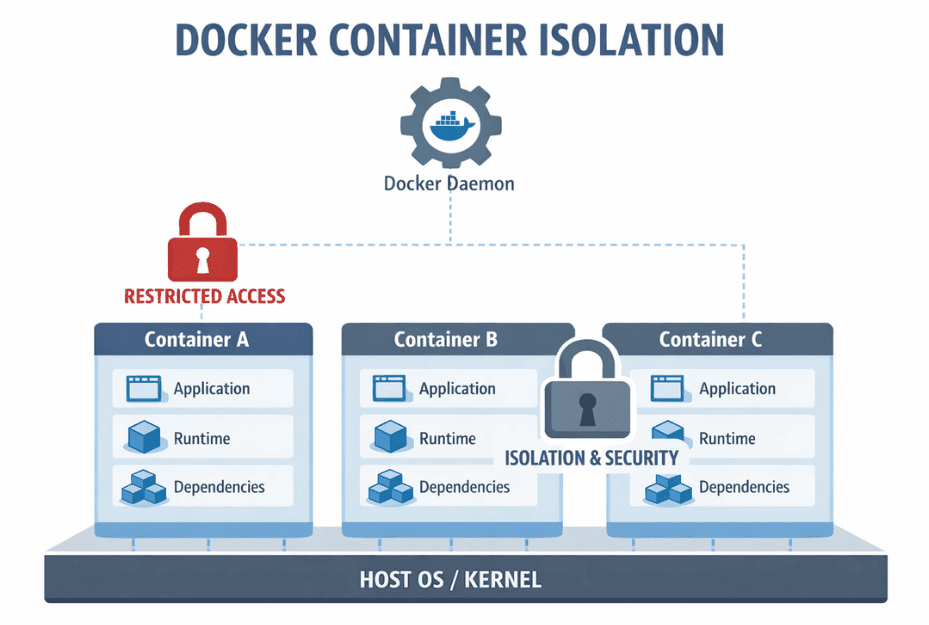

5. Docker Containers

Containers are running instances of Docker images.

In simple words, when you run an image, it becomes a container.

Containers are:

• Lightweight and fast (start in seconds)
• Isolated from each other (each container runs independently)
• Share the host OS kernel (no separate OS required)
• Portable across different environments (dev, test, prod)

👉 This is where your actual application runs.

Example (Run a Container)

docker run nginx

👉 This command creates a container from the nginx image and starts it.

Example (List Running Containers)

docker ps

👉 This shows all currently running containers.

Example (Stop a Container)

docker stop container_id

👉 This stops a running container safely.

6. Docker Registry

A Docker Registry is a storage system where Docker images are stored and shared.

It acts like a library of Docker images.

There are two types:

• Public Registry → Docker Hub (free and widely used)
• Private Registry → Used by companies for secure image storage

👉 Docker pulls images from the registry when they are not available locally.

Example (Pull Image from Registry)

docker pull nginx

👉 This command downloads the nginx image from Docker Hub (public registry).

Example (Push Image to Registry)

docker push my-app

👉 This uploads your custom image to a registry.

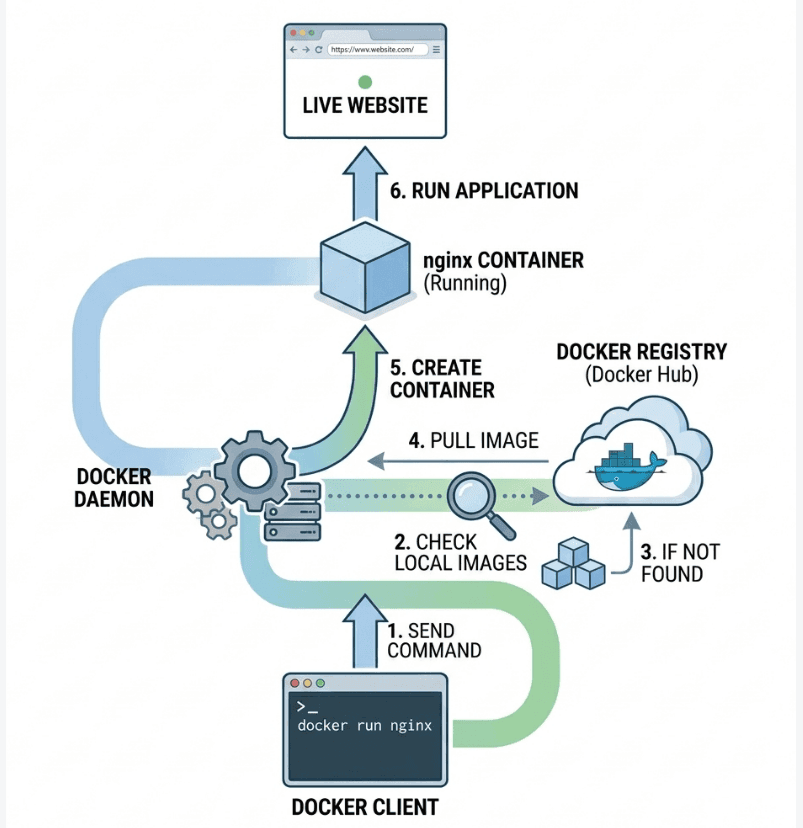

How Docker Architecture Works (Step-by-Step)

Here’s the complete workflow of how Docker runs an application:

1. You run a command using Docker Client
2. The request goes to Docker Daemon
3. Daemon checks for the image locally
4. If not found, it pulls from Docker Registry
5. Daemon creates and runs a container

👉 This process is fast, automated, and works in seconds.

Docker Architecture Diagram (Concept)

Docker Client
     ↓
Docker Daemon (Docker Engine)
     ↓
Check Local Images
     ↓
If Image Not Found
     ↓
Docker Registry (Docker Hub)
     ↓
Pull Docker Image
     ↓
Create Container
     ↓
Run Application

Conclusion

Docker architecture is based on a simple client-server model where the Docker Client sends commands, the Docker Daemon processes them, and containers are created using Docker Images. All components like images, containers, and registry work together in a smooth workflow to build, ship, and run applications quickly.

👉 In simple words: Docker architecture turns a simple command into a running application in a fast, automated, and efficient way.
