Auto-Configuration Import Process

Spring Boot’s biggest strength is auto-configuration — the ability to automatically configure your application based on the classpath, environment, and existing beans.

Behind this simplicity lies a powerful internal engine called the Auto-Configuration Import Process.

This guide explains how Spring Boot discovers, filters, orders, and imports auto-configuration classes, step by step.

---

What Is Auto-Configuration?

Auto-configuration means Spring Boot automatically creates and configures beans without manual configuration.

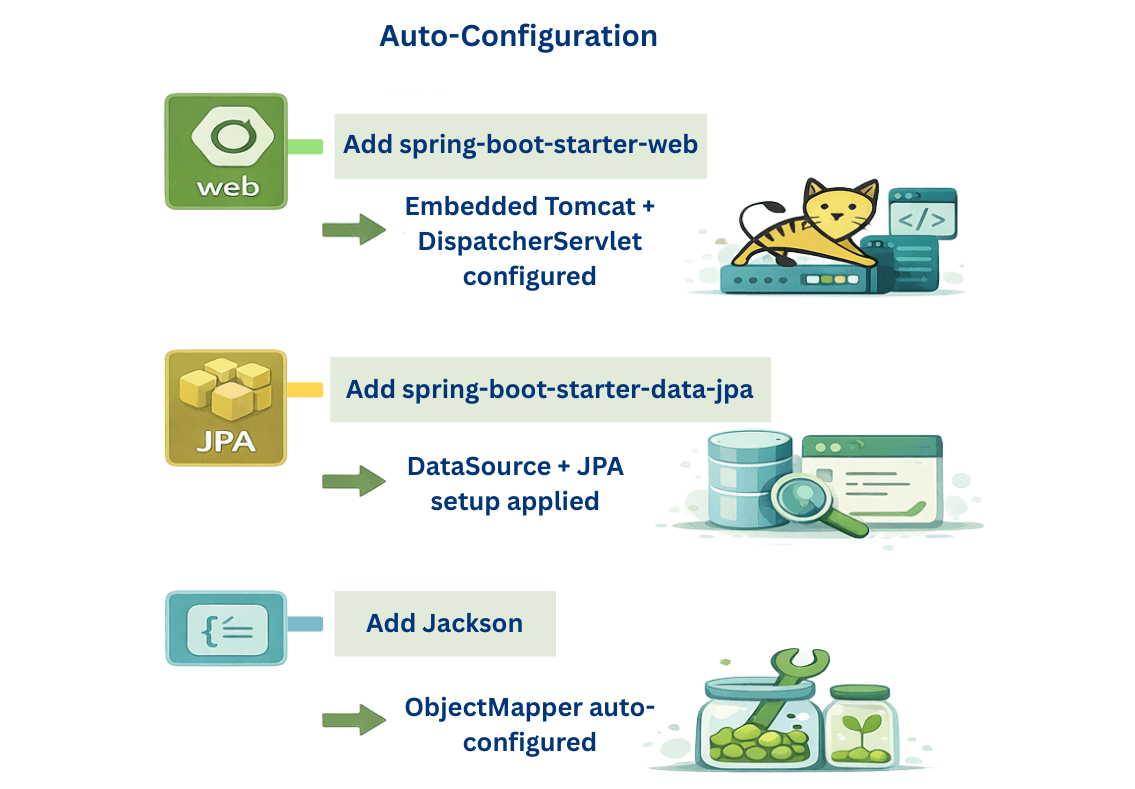

Examples:

• Add spring-boot-starter-web → Embedded Tomcat + DispatcherServlet configured
• Add spring-boot-starter-data-jpa → DataSource + JPA setup applied
• Add Jackson → ObjectMapper auto-configured

This behavior is driven entirely by the Auto-Configuration Import Process.

---

Why Auto-Configuration Import Matters

Understanding this process helps you:

• Debug startup issues
• Control which beans load
• Customize or disable auto-configuration
• Build custom starters
• Understand Spring Boot internals deeply

It forms the core engine of Spring Boot startup.

---

Entry Point: @SpringBootApplication

Every Spring Boot application starts with:

@SpringBootApplication
publicclassMyApplication {
publicstaticvoidmain(String[] args) {
        SpringApplication.run(MyApplication.class, args);
    }
}

Internally, this annotation is a shortcut for:

@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan

? @EnableAutoConfiguration is the key player

---

Step 1: @EnableAutoConfiguration

@EnableAutoConfiguration tells Spring Boot:

“Automatically configure beans based on the classpath, environment, and existing beans.”

Internally, it uses:

@Import(AutoConfigurationImportSelector.class)

➡️ This delegates the entire auto-configuration decision process to AutoConfigurationImportSelector.

---

Step 2: AutoConfigurationImportSelector (The Brain)

AutoConfigurationImportSelector is responsible for:

• Discovering auto-configuration classes
• Applying exclusions
• Evaluating conditions
• Ordering configurations
• Importing valid auto-configs

It implements:

DeferredImportSelector

? This ensures auto-configurations are applied after user configurations, allowing overrides.

Core Method:

selectImports(AnnotationMetadata metadata)

Returns a list of auto-configuration class names to import.

---

Step 3: Load Auto-Configuration Candidates

Spring Boot reads auto-configuration class names from metadata files.

Spring Boot ≤ 2.x

META-INF/spring.factories

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\\
org.springframework.boot.autoconfigure.web.servlet.WebMvcAutoConfiguration,\\
org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration

Spring Boot 3.x+

META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports

• Faster startup
• Reduced classpath scanning
• Better modularity

---

Step 4: Apply Exclusions

Spring Boot removes auto-configurations explicitly excluded.

Exclusion Sources:

Spring Boot supports three official ways to exclude auto-configuration classes.

1. Annotation - The most common and recommended approach.

@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)
public class MyApplication {
    public static void main(String[] args) {
        SpringApplication.run(MyApplication.class, args);
    }
}

2. Properties - Exclusions can also be defined in application.properties or application.yml.

spring.autoconfigure.exclude=org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration

3. Programmatic exclusions - Exclusions can be applied programmatically using the SpringApplication API.

SpringApplication application = new SpringApplication(MyApplication.class);
application.setExcludeConfiguration(DataSourceAutoConfiguration.class);
application.run(args);

---

Step 5: Conditional Evaluation (Core Logic)

Each auto-configuration class is guarded by conditions such as:

• @ConditionalOnClass
• @ConditionalOnMissingBean
• @ConditionalOnProperty
• @ConditionalOnWebApplication
• @ConditionalOnExpression

Example:

@ConditionalOnClass(DataSource.class)
@ConditionalOnMissingBean(DataSource.class)
publicclassDataSourceAutoConfiguration {
}

Evaluation Rules:

• All conditions pass → auto-config applied
• Any condition fails → auto-config skipped

? Class-level conditions run first

? Bean-level conditions run later

---

ConditionEvaluationReport (Debug Goldmine)

Spring Boot records every decision made during auto-configuration.

Enable it with:

debug=true

Sample Output:

DataSourceAutoConfiguration:
   Did not match:
      - @ConditionalOnProperty (spring.datasource.url) not found

This report explains exactly why something loaded or didn’t.

---

Step 6: Ordering Auto-Configurations

Spring Boot ensures correct startup order using:

• @AutoConfigureBefore
• @AutoConfigureAfter
• @AutoConfigureOrder

Examples:

• DataSource → before JPA
• WebServer → before MVC
• Jackson → before HTTP converters

➡️ Ordering is resolved before import.

---

Step 7: Import into ApplicationContext

After filtering and ordering:

• Valid auto-configuration classes are imported
• Treated as @Configuration classes
• Their @Bean methods are registered

This happens during:

refreshContext()
 └── invokeBeanFactoryPostProcessors()

---

Step 8: Bean-Level Conditional Evaluation

Inside auto-configurations:

@Bean
@ConditionalOnMissingBean
public ObjectMapperobjectMapper() {
returnnewObjectMapper();
}

Bean-level conditions are evaluated after:

• User @Configuration classes
• Custom beans

? This enables Spring Boot’s golden rule:

Auto-configuration backs off if you define your own bean

---

Complete Auto-Configuration Import Flow

@SpringBootApplication
   └── @EnableAutoConfiguration
         └── AutoConfigurationImportSelector
               ├── Load candidates (factories / imports)
               ├── Remove exclusions
               ├── Apply class-level conditions
               ├── Sort auto-configurations
               └── Import into ApplicationContext
                     ├── Evaluate bean-level conditions
                     └── Instantiate beans

---

Where It Fits in Startup Lifecycle

Auto-configuration runs during:

refreshContext()
   ├── Load bean definitions
   ├── Evaluate conditions
   ├── Import auto-configurations
   └── Instantiate beans

Ensuring:

• User beans get priority
• Safe defaults are applied
• Predictable startup behavior

---

Benefits of Auto-Configuration Import Process

• Zero or minimal configuration
• Environment-aware behavior
• Modular and extensible design
• Easy customization and override
• Production-ready defaults

---

Conclusion

The Auto-Configuration Import Process is the engine behind Spring Boot’s “just works” philosophy.

It intelligently:

• Detects your environment
• Applies smart defaults
• Loads only what’s needed
• Stays override-friendly and debuggable

Mastering this process moves you from Spring Boot user → Spring Boot internals expert.
