GitOps (Argo CD / Flux)

GitOps is a modern way to deploy and manage applications in Kubernetes using Git as the single source of truth. Instead of manually applying YAML files, you define everything in a Git repository, and tools automatically sync it with your cluster.

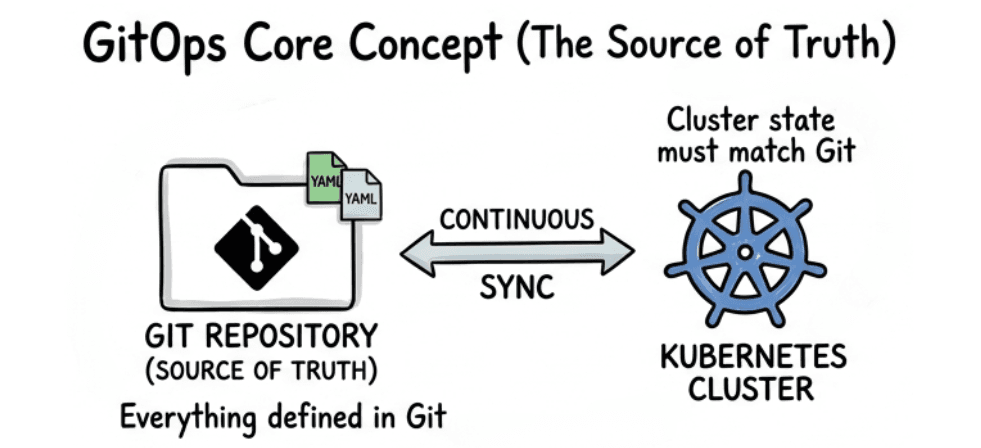

What is GitOps?

GitOps is a modern deployment approach where Git acts as the single source of truth for your Kubernetes configurations. Instead of making changes directly in the cluster, all updates are managed through Git commits.

All Kubernetes configurations are stored in Git
Changes are applied via Git commits (version-controlled)
A GitOps tool continuously ensures the cluster matches the desired state defined in Git.

In simple words: “If it’s in Git → it should run in Kubernetes.”

? This approach improves consistency, traceability, and automation in deployments.

Benefits of GitOps

GitOps makes deployments more reliable by using Git as the central source of truth.

Version-Controlled Deployments: All changes are tracked in Git, so you can see who changed what and when.
Easy Rollback: You can quickly revert to a previous commit without complex steps.
Full Audit History: Git keeps a complete history of changes, useful for debugging and compliance.
Single Source of Truth: Everything is defined in Git, avoiding manual changes in the cluster.

GitOps Tools

Argo CD

Argo CD is a popular GitOps tool with a user-friendly UI dashboard that helps you visualize and manage deployments easily. It supports both manual and automatic synchronization between Git and your Kubernetes cluster.

Example:

kubectl apply -n argocd -f <https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml>

? This command installs Argo CD in your Kubernetes cluster.

Flux

Flux is a lightweight and Kubernetes-native GitOps tool that focuses on automation. It continuously monitors your Git repository and automatically applies changes to the cluster without manual intervention.

Example:

flux bootstrap github \\
  --owner=my-github-user \\
  --repository=my-repo \\
  --branch=main \\
  --path=./clusters/my-cluster

? This command connects your Kubernetes cluster with a Git repository and enables GitOps automation.

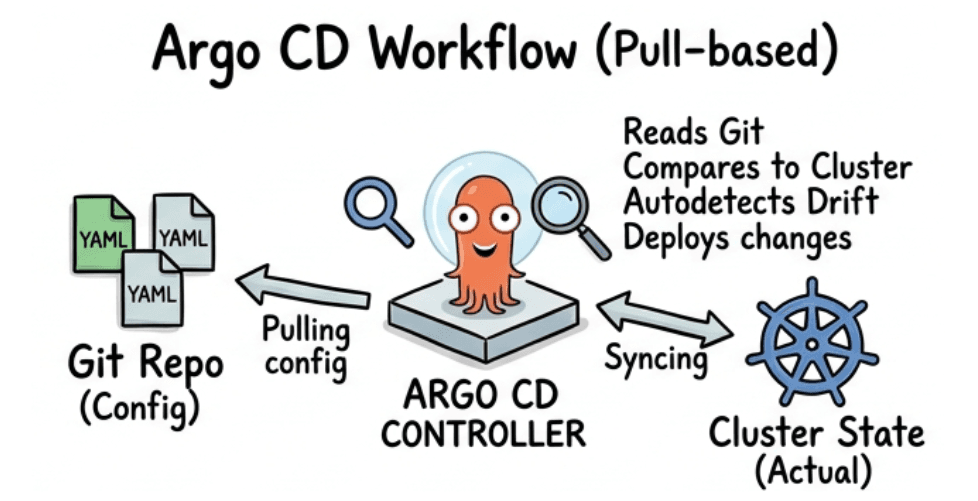

How Argo CD Works

Argo CD follows a pull-based GitOps model, where it continuously monitors your Git repository and ensures the Kubernetes cluster matches the desired state.

Connects to your Git repository
Reads Kubernetes YAML configurations
Compares Git state with the current cluster state
Automatically syncs any differences

? Flow:

Git Repo → Argo CD → Kubernetes Cluster

How Flux Works

Flux continuously monitors your Git repository and ensures the Kubernetes cluster always matches the desired state defined in Git.

Detects changes in the Git repository
Automatically applies updates to the cluster
Fixes configuration drift (if manual changes are made in the cluster)

? This process is called Continuous Reconciliation.

Install Argo CD in Kubernetes

To install Argo CD in your Kubernetes cluster, first create a dedicated namespace and then apply the official installation manifest.

kubectl create namespace argocd

kubectl apply -n argocd -f <https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml>

? This will deploy Argo CD components into the argocd namespace.

Access Argo CD UI

To access the Argo CD UI, you need to port-forward the Argo CD server service to your local machine.

kubectl port-forward svc/argocd-server -n argocd 8080:443

? Open in your browser:

<https://localhost:8080>

Get Admin Password

kubectl get secret argocd-initial-admin-secret \\
  -n argocd \\
  -o jsonpath="{.data.password}" | base64 -d

? This command retrieves and decodes the default admin password.

Connect Git Repository (Argo CD)

To connect your Git repository with Argo CD, use the CLI to add your repo credentials.

argocd repo add <https://github.com/your-repo.git> \\
  --username your-username \\
  --password your-password

? This command registers your Git repository with Argo CD so it can track and deploy your Kubernetes configurations.

Deploy Application Using Argo CD

You can deploy applications in Kubernetes using an Argo CD Application manifest, which connects your Git repository to the cluster.

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: my-app
spec:
  destination:
    server: <https://kubernetes.default.svc>
    namespace: default
  source:
    repoURL: <https://github.com/your-repo.git>
    path: k8s
    targetRevision: HEAD
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

This configuration tells Argo CD to deploy the application from your Git repository and automatically sync changes with the cluster.

Apply the Configuration

kubectl apply -f app.yaml

? This command creates the Argo CD application and starts the deployment process.

Difference Between Auto-Sync vs Manual Sync

Argo CD provides two ways to sync applications from Git to your Kubernetes cluster, depending on your deployment needs.

Feature	Auto Sync	Manual Sync
Deployment	Automatically deploys changes from Git	Deployment is triggered manually
Sync Behavior	Always keeps cluster in sync with latest code	Sync happens only when triggered
Control	Less manual control	Full control over deployments
Best Use Case	Production environments	Testing / staging environments

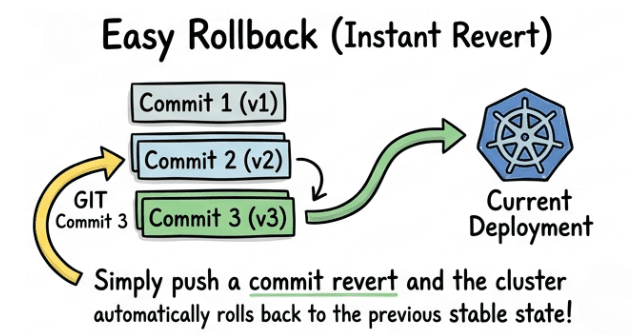

Rollback Using Git Commits

Rollback in GitOps is simple and version-controlled. You can revert your application to a previous state using Git.

git revert <commit-id>
git push

? Once the changes are pushed, Argo CD or Flux will automatically sync the cluster and restore the previous version.

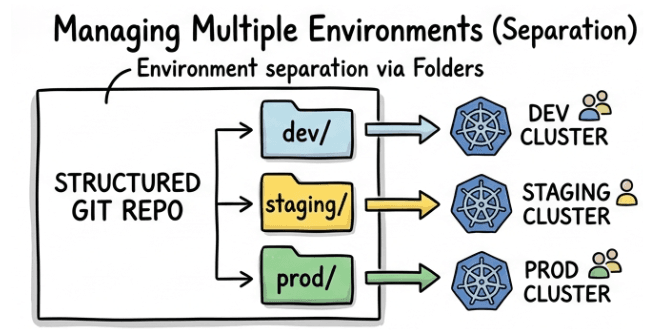

Managing Multiple Environments (Dev / Staging / Prod)

In GitOps, managing multiple environments is done using a structured Git repository. Each environment (Dev, Staging, Prod) is separated to ensure better control and safe deployments.

Folder Structure Example

repo/
 ├── dev/
 ├── staging/
 └── prod/

Each environment typically has:

Different configurations
Separate namespaces
Independent deployments

? This approach helps maintain isolation between environments and reduces the risk of affecting production systems.

Using Branches

Using separate Git branches is a simple way to manage different environments.

dev branch → Used for development
main branch → Used for production

? This helps isolate changes and ensures stable production deployments.

Using Kustomize

Kustomize allows you to customize Kubernetes configurations for different environments without duplicating code.

resources:
- ../base

namePrefix: dev-

? This configuration reuses a base setup and applies environment-specific changes (like prefixing resource names with dev-).

Conclusion

GitOps with Argo CD and Flux simplifies Kubernetes deployments by using Git as the central source of truth and automating the entire workflow.

Uses Git as the single source of truth
Automates deployments
Makes rollbacks simple and reliable
Improves security and auditability
Enables modern DevOps workflows

? If you're working with Kubernetes in production, GitOps is a must-know approach.
