JWT Token Relay Pattern

In modern distributed systems, authentication is only half the story. The real challenge is identity propagation — once a user logs in, how do downstream services like Order, Payment, or Inventory know who actually initiated the request?

This is where the JWT Token Relay Pattern becomes essential.

If you're building production-ready Spring Boot microservices, understanding this pattern is not optional — it’s a core security concept every backend developer should master.

---

What Is JWT Token Relay Pattern?

The JWT Token Relay Pattern is a design approach where a JSON Web Token (JWT) issued after authentication is forwarded (relayed) from one service to another during internal service communication.

Instead of each microservice calling the Identity Provider repeatedly:

• The API Gateway validates the token.
• The same JWT is forwarded in the Authorization header.
• Each downstream service independently validates the token before processing.

In simple words:

Authenticate once. Validate everywhere.

This enables:

• Stateless authentication
• Secure identity propagation
• Clean microservices communication
• Scalable cloud-native architecture

---

The Core Problem It Solves

Without token relay, internal services only know that another service made the request — not which user initiated it.

This creates problems such as:

• Broken Role-Based Access Control (RBAC)
• Missing scope-based authorization
• Poor auditing and logging
• Weak multi-tenant isolation

Token Relay fixes this by preserving the original user identity throughout the entire request chain.

---

Why JWT Token Relay Matters

Modern systems are built using:

• Microservices architecture
• Cloud-native deployment
• Containerized infrastructure (Docker & Kubernetes)
• API-first design
• Stateless backend principles

Traditional session-based authentication introduces scalability bottlenecks and tight coupling. JWT-based authentication removes these issues, and Token Relay ensures identity consistency across distributed services.

---

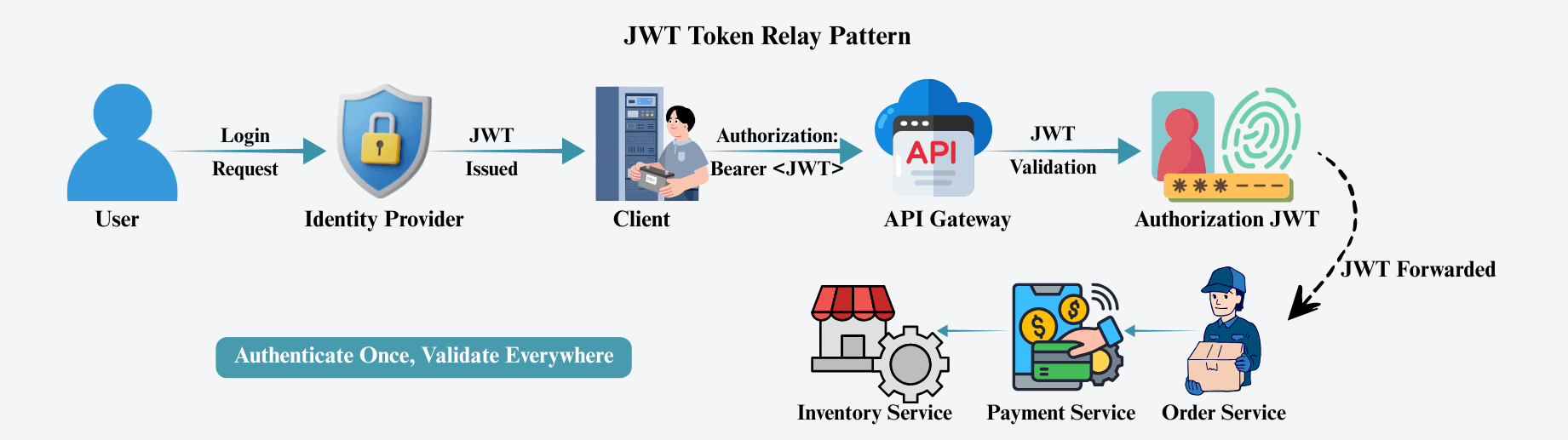

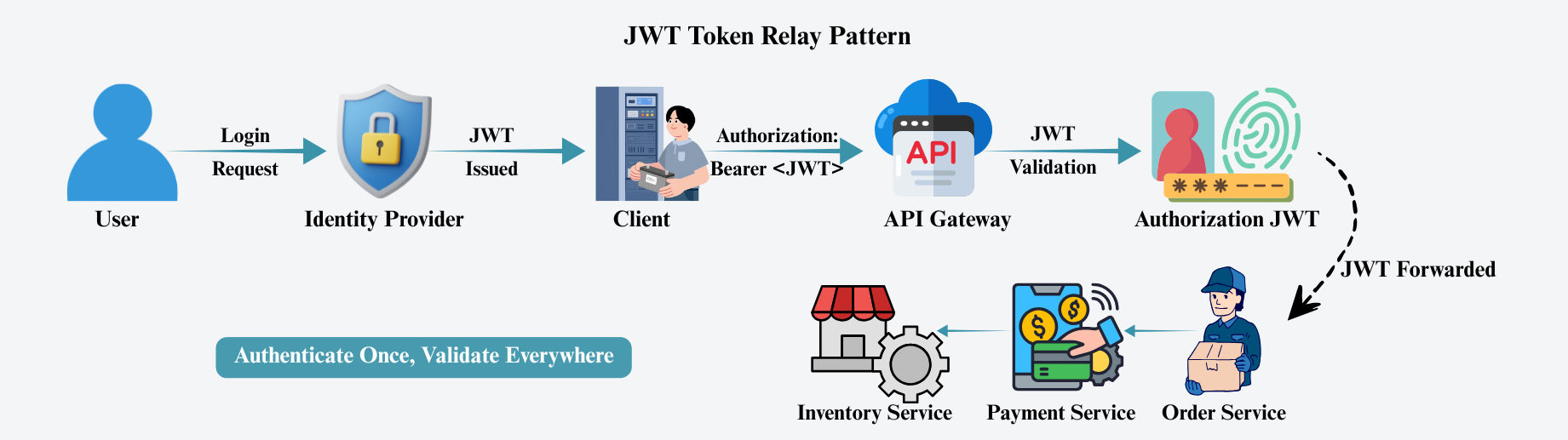

How JWT Token Relay Works (Step-by-Step)

1. User Authentication

The client authenticates using OAuth 2.0 or OpenID Connect.

The Identity Provider issues a signed JWT containing:

• User ID
• Roles and permissions
• Scopes
• Issuer (iss)
• Audience (aud)
• Expiration time (exp)

2. Client Sends JWT to API Gateway

The client sends the request:

Authorization: Bearer <access_token>

The API Gateway:

• Validates the signature
• Checks expiration
• Verifies issuer and audience
• Confirms required scopes

If valid, the request is forwarded.

3. Token Relay to Downstream Services

When the Gateway calls internal services:

• It forwards the same JWT in the Authorization header.
• Each microservice independently validates the token.
• Business logic runs based on user claims.

No additional login request is required.

Identity securely flows across the entire microservices chain.

---

Implementing JWT Token Relay in Spring Boot

Spring makes implementation straightforward using:

• Spring Security
• Spring Cloud Gateway
• OAuth2 Resource Server

Step 1: Configure Token Relay in Spring Cloud Gateway

You can enable token relay directly in application.yml:

spring:
  cloud:
    gateway:
      routes:
        - id: order-service
          uri: lb://order-service
          predicates:
            - Path=/orders/**
          filters:
            - TokenRelay=

The TokenRelay filter:

• Extracts the OAuth2 access token
• Injects it into the outgoing request
• Forwards it to the target microservice

No custom Java code required for basic relay.

---

Step 2: Configure Microservice as Resource Server

Each microservice must validate the JWT independently.

Example configuration:

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http
            .authorizeHttpRequests(auth -> auth
                .requestMatchers("/orders/**").hasAuthority("SCOPE_read")
                .anyRequest().authenticated()
            )
            .oauth2ResourceServer(oauth2 -> oauth2
                .jwt(Customizer.withDefaults()));

        return http.build();
    }
}

This ensures:

• JWT signature validation
• Scope-based authorization
• Stateless security configuration

Each service trusts the JWT signature — not the calling service.

---

Security Best Practices

For production-grade systems:

• Validate JWT in every service
• Use strong signing algorithms (RS256 or ES256)
• Keep access tokens short-lived
• Implement refresh token rotation
• Avoid storing sensitive data in JWT payload
• Enforce least-privilege access
• Secure internal communication using HTTPS or mTLS

Even internal networks must follow zero-trust principles.

---

JWT Token Relay vs Token Exchange

JWT Token Relay

• Forwards the original token
• Simple setup
• Low latency
• Best for most Spring Boot microservices

Token Exchange

• Generates a new token for downstream service
• Better isolation
• More complex setup

For most projects and real-world systems, JWT Token Relay is sufficient.

---

When Should You Use It?

Use JWT Token Relay if:

• You are building Spring Boot microservices
• You use an API Gateway
• Your architecture is stateless
• You rely on OAuth 2.0 or OpenID Connect
• You deploy in cloud-native environments

It may not be necessary for monolithic or session-based legacy systems.

---

Real-World Use Cases

JWT Token Relay is widely used in:

• API Gateway → Microservices architecture
• Kubernetes-based deployments
• SaaS platforms
• Multi-tenant enterprise systems
• Zero-trust cloud environments

It forms the backbone of identity-aware distributed systems.

---

Conclusion

The JWT Token Relay Pattern is essential for building secure and scalable Spring Boot microservices. It ensures that user identity flows securely from the API Gateway to every downstream service without relying on centralized session storage or repeated authentication calls.

By combining:

• Spring Cloud Gateway TokenRelay
• Spring Security Resource Server
• Strong JWT validation practices

You can build a secure, scalable, and production-ready microservices ecosystem that follows modern cloud-native and stateless architecture principles.
