CompletableFuture in Microservices

In modern microservices architecture, a single request often depends on multiple downstream services. If those calls are executed sequentially, overall latency increases significantly.

CompletableFuture in Java allows you to execute independent service calls in parallel, improving response time and throughput. It integrates seamlessly with Spring Boot applications.

What is CompletableFuture?

CompletableFuture is a powerful class from Java’s java.util.concurrent package (introduced in Java 8) that helps you write asynchronous and non-blocking code in a clean and structured way.

It allows you to:

Run tasks in the background without blocking the main thread
Chain multiple asynchronous operations
Combine results from different services
Handle exceptions smoothly
Build parallel execution flows easily

Simple Definition

CompletableFuture is a modern Java feature that enables asynchronous, non-blocking, and composable programming.

Why Use CompletableFuture in Microservices?

In microservices architecture, one API call often depends on multiple services.

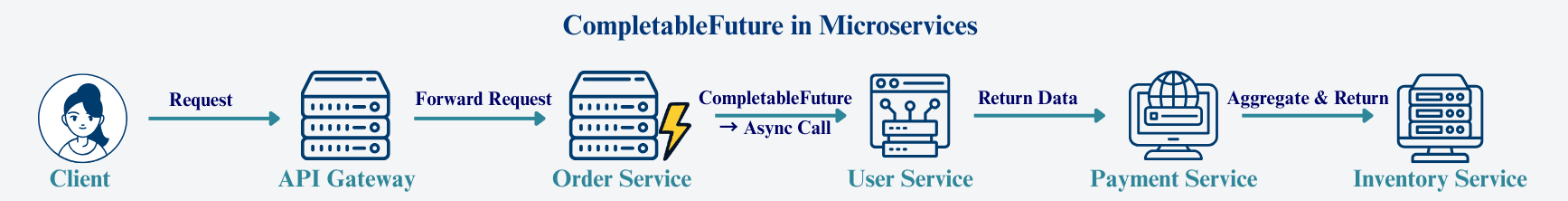

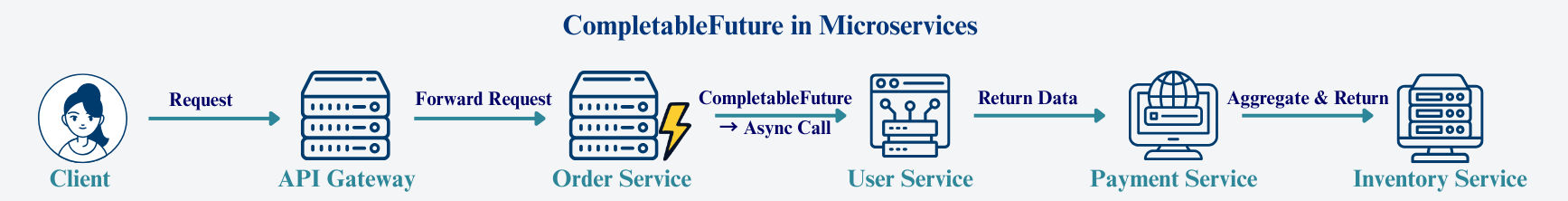

Example flow:

Sequential Calls (One After Another)

When services are called one by one, each service waits for the previous one to finish.

Total Response Time = Sum of All Services

Example:

User Service = 200ms
Payment Service = 300ms
Inventory Service = 400ms

Total = 900ms → Client waits for all services to complete, increasing API latency.

Parallel Execution with CompletableFuture

With CompletableFuture, services run simultaneously instead of sequentially.

Total Response Time ≈ Slowest Service

Example:

Slowest service = 400ms

Total ≈ 400ms → Significantly faster than sequential calls.

Practical Implementation with CompletableFuture

1. Enable Async in Spring Boot

Enable asynchronous processing by adding @EnableAsync in a configuration class:

@Configuration
@EnableAsync
public class AsyncConfig {
}

2. Service Layer (Parallel Calls)

Use @Async with CompletableFuture to execute multiple service calls in parallel:

@Service
public class OrderAggregatorService {

@Async
public CompletableFuture<User> getUser(Long userId) {
return CompletableFuture.completedFuture(userService.getUser(userId));
}

@Async
public CompletableFuture<Payment> getPayment(Long orderId) {
return CompletableFuture.completedFuture(paymentService.getPayment(orderId));
}

@Async
public CompletableFuture<Inventory> getInventory(Long productId) {
return CompletableFuture.completedFuture(inventoryService.getInventory(productId));
}
}

Each service call runs in a separate thread, improving performance for multiple dependent services.

3. Controller Aggregation

Combine all async calls in the controller and wait for completion:

@GetMapping("/order-summary/{id}")
public OrderSummary getOrderSummary(@PathVariable Long id) throws Exception {

    CompletableFuture<User> userFuture = service.getUser(id);
    CompletableFuture<Payment> paymentFuture = service.getPayment(id);
    CompletableFuture<Inventory> inventoryFuture = service.getInventory(id);

    // Wait for all futures to complete
    CompletableFuture.allOf(userFuture, paymentFuture, inventoryFuture).join();

    return new OrderSummary(
        userFuture.get(),
        paymentFuture.get(),
        inventoryFuture.get()
    );
}

Now all services execute in parallel.

Key CompletableFuture Methods

1. allOf() – Wait for All Tasks

Waits for all futures to complete before proceeding.
Useful when all results are required for the next step.

CompletableFuture.allOf(f1, f2, f3).join();

Used when all results are required.

2. thenApply() – Transform Result

Transforms the result of a future without blocking.
Ideal for simple data transformations after async execution.

future.thenApply(result -> result.toUpperCase());

3. thenCombine() – Combine Two Futures

Combines results from two independent futures.
Returns a new future with the combined result.

future1.thenCombine(future2, (r1, r2) -> r1 + r2);

4. thenCompose() – Chain Async Calls

Use when the second async call depends on the first.
Avoids nested callbacks and keeps code clean.

future1.thenCompose(result ->
    CompletableFuture.supplyAsync(() -> anotherCall(result)));

5. exceptionally() – Error Handling

Handles exceptions gracefully.
Provides a fallback value if the async task fails.

future.exceptionally(ex -> {
    log.error("Error occurred", ex);
    return fallbackValue;
});

Production-Ready Thread Pool

Using the default ForkJoinPool in high-load microservices can lead to performance bottlenecks. Always configure a dedicated thread pool for async tasks.

@Bean(name = "asyncExecutor")
public Executor asyncExecutor() {
    ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
    executor.setCorePoolSize(10);       // Minimum threads always available
    executor.setMaxPoolSize(20);        // Maximum threads under high load
    executor.setQueueCapacity(100);     // Tasks waiting if all threads busy
    executor.setThreadNamePrefix("CF-"); // Thread name prefix for easier debugging
    executor.initialize();
    return executor;
}

Usage:

CompletableFuture.supplyAsync(() -> serviceCall(), asyncExecutor);

Executes serviceCall() asynchronously using the configured thread pool.
Prevents unbounded thread creation and improves stability under high load.
Helps maintain consistent performance in production microservices.

Real-World Use Cases

CompletableFuture is widely used in microservices and high-performance APIs to execute multiple tasks in parallel without blocking the main thread. Common scenarios include:

API Gateway aggregation layer – Combine responses from multiple services efficiently.
BFF (Backend for Frontend) – Prepare composite responses for web or mobile clients.
Dashboard APIs – Fetch metrics and stats from several microservices simultaneously.
Order summary endpoints – Aggregate user, payment, and inventory details quickly.
Microservice composition patterns – Parallel execution of dependent service calls.

Error Handling Strategy in Distributed Systems

In microservices, downstream services can:

Timeout or respond slowly
Fail unexpectedly
Trigger circuit breakers

To handle this gracefully, combine CompletableFuture with:

Timeout handling
Retry mechanisms
Circuit breaker libraries like Resilience4j

Example: Fallback on Failure

CompletableFuture<User> userFuture =
    CompletableFuture.supplyAsync(() -> userService.getUser(id))
                     .exceptionally(ex ->newUser("default"));

If userService fails, a default User object is returned.
Ensures your API remains responsive even when downstream services fail.

Difference Between CompletableFuture vs @Async

Feature	CompletableFuture	`@Async`
Background execution	Runs tasks asynchronously in a separate thread	Runs tasks asynchronously using Spring’s thread pool
Parallel composition	Easily combine multiple async tasks in parallel	Limited support for combining multiple tasks
Combining results	Built-in methods like `thenCombine` and `allOf`	Must manually handle result aggregation
Error handling	Advanced, supports `exceptionally()`, `handle()`	Basic, mostly logs uncaught exceptions
Best For	Service aggregation, parallel API calls, complex workflows	Simple fire-and-forget background tasks

When NOT to Use CompletableFuture

Avoid CompletableFuture if your tasks require:

You need guaranteed delivery
Communication is event-driven
You require distributed reliability

For such cases, use messaging systems like:

Apache Kafka
RabbitMQ

Common Mistakes

Blocking too early using .get()
Ignoring timeouts
No fallback strategy
Using default common pool
Overusing async for CPU-heavy tasks

Best Practices for Microservices

Run only independent calls in parallel
Configure custom executor
Add timeout + fallback
Use circuit breakers
Monitor thread pool metrics
Avoid nested blocking calls

Conclusion

CompletableFuture is a powerful concurrency tool for microservice-based systems. It enables:

Parallel execution of services
Non-blocking, asynchronous composition
Efficient API aggregation
Improved throughput and scalability
