Classpath Scanning

Classpath scanning is one of the most expensive operations during Spring Boot startup.

It directly impacts:

• Application startup time
• Memory consumption
• Runtime performance
• Scalability in large applications

Understanding how it works internally helps you optimize startup, reduce memory footprint, and build production-grade systems.

What Is Classpath Scanning?

Classpath scanning is the process by which Spring:

• Searches the classpath for eligible classes
• Detects annotations like:
  • @Component
  • @Service
  • @Repository
  • @Controller
  • @Configuration
• Converts matching classes into BeanDefinitions

Important: Spring scans compiled bytecode metadata (.class files) using ASM — not source code.

Example

@Service
publicclassOrderService {
publicvoidplaceOrder() { }
}

Why is Classpath Scanning Important?

• Automatic Bean Registration – No need to manually register each bean.
• Simplifies Development – Reduces boilerplate and keeps your code cleaner.
• Supports Modular Applications – Works efficiently in large projects with multiple packages and dependencies.
• Essential for Auto-Configuration – Many Spring Boot features rely on scanning to detect available components and libraries.

When Does Classpath Scanning Happen?

Classpath scanning occurs during ApplicationContext startup, before beans are instantiated:

ApplicationContext.refresh()
   └──invokeBeanFactoryPostProcessors()
         └── ConfigurationClassPostProcessor
               └── ComponentScan processing

So scanning happens before beans are instantiated, during BeanDefinition loading.

How Classpath Scanning Works Internally

Step-by-Step Internal Flow

@ComponentScan
      ↓
ClassPathBeanDefinitionScanner
      ↓
PathMatchingResourcePatternResolver
      ↓
Read .classfiles (bytecode)
      ↓
ASM MetadataReader
      ↓
Create BeanDefinitions
      ↓
Registerin BeanDefinitionRegistry

Here, Internal Explanation of Each Step :

1. @ComponentScan Trigger
   • Declared explicitly or implicitly via @SpringBootApplication
   • Defines base packages to scan
2. ClassPathBeanDefinitionScanner
   • Core engine responsible for scanning packages
   • Detects annotations like @Component, @Service, @Repository
   • Applies include/exclude filters
3. PathMatchingResourcePatternResolver
   • Resolves package paths to .class resources in:
     • File system
     • JARs
   • Supports wildcards (e.g., /*.class)
4. .class File Discovery (No Class Loading)
   • Reads raw .class files without loading them
   • Avoids classloader overhead and premature static initialization
5. ASM MetadataReader
   • Reads class-level metadata: annotations, superclass, interfaces
   • No class loading required
6. BeanDefinition Creation
   • Stores metadata: class name, scope, dependencies, lazy flag, conditional metadata
7. Registration in BeanDefinitionRegistry
   • Stored in DefaultListableBeanFactory
   • Beans are not instantiated yet

Key Internal Classes

ASM bytecode reading avoids class loading, improving performance.

What Gets Scanned?

Spring scans:

• All packages defined in:

  • @ComponentScan

  • @SpringBootApplication

    (default base package = package of the main application class)

• All .class files under those packages (recursively)

Spring scans classpath .class files within configured base packages to detect component candidates and configuration metadata, creating BeanDefinitions — without loading the classes into the JVM.

Example

@SpringBootApplication
publicclassOrderApplication {
publicstaticvoidmain(String[] args) {
        SpringApplication.run(OrderApplication.class, args);
    }
}

Project structure:

com.example.order
 ├─ OrderApplication
 ├─ controller
 │   └─ OrderController.class
 ├─ service
 │   └─ OrderService.class
 └─ repository
     └─ OrderRepository.class

Spring scans all .class files in controller, service, repository and registers them as BeanDefinitions.

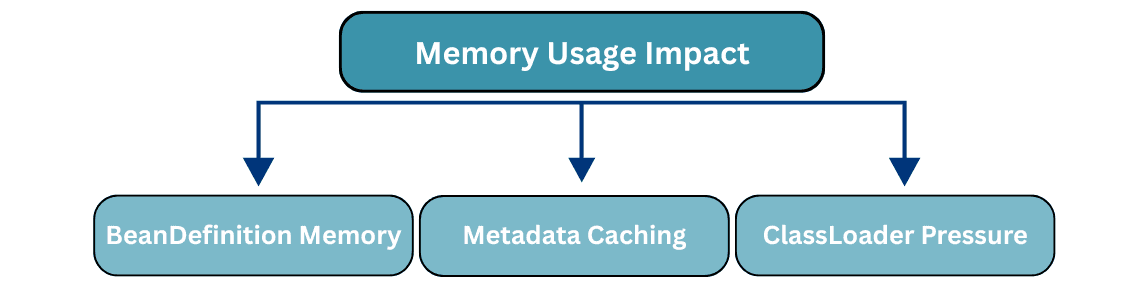

Memory Usage Impact

Classpath scanning impacts memory in three main ways:

1. BeanDefinition Memory

• Each scanned class creates a BeanDefinition object
• Large projects can register thousands of BeanDefinitions before any bean exists

Example:

• 500 @Component + 200 @Service + 100 @Repository + 50 auto-configured = ~850 BeanDefinitions

2. Metadata Caching

Spring caches:

• Annotation metadata
• Condition evaluation results
• Factory metadata

Example

@ConditionalOnClass(name = "org.postgresql.Driver")

Spring:

1. Reads annotation metadata via ASM
2. Evaluates the condition once
3. Stores the result in internal caches

➡ Cached metadata stays in memory for the entire ApplicationContext lifecycle.

3. ClassLoader Pressure

Although Spring avoids class loading during scanning:

• Some conditions (@ConditionalOnClass) trigger class loading
• Auto-configuration classes may load optional dependencies, increasing JVM Metaspace usage

Examples

@ConditionalOnClass(DataSource.class)

spring-boot-starter-data-jpa

These may trigger loading of:

• JDBC drivers
• Hibernate classes
• JPA provider APIs

Result

• Increased JVM Metaspace usage
• Longer startup time under low-memory conditions

Performance Cost of Classpath Scanning

Classpath scanning happens only at startup, and its cost comes from I/O and CPU:

• Startup Cost:
  • Reading .class files from filesystem and JARs
  • Parsing bytecode using ASM
  • Can take hundreds of milliseconds to seconds in large applications
• Runtime Cost:
  • None — scanning does not occur again after startup
  • Runtime performance is unaffected

Critical for:

• Microservices
• Serverless applications
• Kubernetes pods
• CI/CD pipelines

Auto-Configuration vs Component Scanning

Auto-configuration is metadata-driven, not scan-driven

Common Performance Problems

• Scanning overly broad packages (@ComponentScan("com"))
• Monolithic package structures
• Excessive conditional annotations
• Unused starters on classpath
• Multiple application contexts

Optimization Strategies

Optimizing classpath scanning improves startup time, memory usage, and overall application performance. Here are the best practices:

1. Narrow Component Scans

Limit scanning to only the necessary packages:

@SpringBootApplication(scanBasePackages = "com.myapp.order")

Avoid scanning root or unrelated packages to reduce overhead.

2. Prefer Auto-Configuration

Use Spring Boot starters whenever possible instead of manually registering @Component beans.

This reduces scan cost and leverages metadata-driven configuration.

3. Exclude Unused Auto-Configurations

@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)

Excluding auto-configurations you don’t need reduces conditional checks and class loading.

4. Enable Lazy Initialization

spring.main.lazy-initialization=true

BeanDefinitions are still created, but bean instances are only instantiated when needed, saving memory and improving startup time.

5. Remove Unused Dependencies

Each dependency adds JARs and increases scanning scope.

Keep your classpath clean for faster scanning.

6. Use Spring Context Indexer

spring-context-indexer

Generates compile-time metadata, reducing runtime scanning and improving performance in large applications.

Measuring & Debugging Classpath Scanning

Monitoring classpath scanning helps you identify performance bottlenecks and optimize startup.

1. Enable Startup Logs

Add the following to your application.properties or application.yml:

debug=true

This will show:

• Which auto-configurations were applied
• Which conditions failed
• Helpful information for debugging slow startup issues

2. JVM Startup Metrics

Use JVM options to analyze class loading during startup:

• startuplevel – Detailed startup timing
• Xlog:class+load – Logs class loading events

3. Spring Boot Actuator /startup Endpoint

• Provides a visual timeline of startup phases
• Shows time spent in component scanning, bean instantiation, and auto-configuration
• Very useful for large applications or microservices

Classpath Scanning Lifecycle

JVM Starts
   ↓
ApplicationContext Created
   ↓
Component Scan
   ↓
ASMreads bytecode
   ↓
BeanDefinitions created
   ↓
Metadata cached
   ↓
Beans instantiated later

Why This Matters in Production

• Faster pod startup in Kubernetes
• Lower memory usage
• Better CI/CD times
• Reduced cold-start latency
• Scalable microservices

Key Takeaways

• Classpath scanning is startup-time intensive
• Spring creates BeanDefinitions, not beans
• Uses ASM bytecode reading for performance
• Memory usage grows with classpath size, number of components, and conditional checks
• Optimize scans with narrow packages, lazy init, and auto-configuration

Conclusion

Classpath scanning is powerful but costly. Understanding its internals helps you:

• Build faster and leaner Spring Boot applications
• Reduce startup time and memory footprint
• Scale applications efficiently in production

👉 Mastering classpath scanning is essential for production-ready Spring Boot applications.
