Integration Testing in Microservices

Integration testing ensures that all your microservices, databases, message brokers, and external APIs work together correctly. Unlike monolithic apps, microservices are distributed, making testing more complex due to network calls, independent deployments, and asynchronous messaging. Integration tests validate real interactions, not just isolated service logic, helping catch issues before production.

---

What is Integration Testing in Microservices?

Integration testing in microservices ensures that all services and their dependencies work together correctly. It validates:

• Services communicate via REST, gRPC, or messaging systems.
• Databases and caches are updated properly.
• External APIs respond as expected.
• Security, headers, and serialization behave correctly.

Why it’s harder than monolith testing:

• Services are distributed and deployed independently.
• Each service has its own database.
• Network delays, latency, and failures can occur.

Example:

When an Order Service calls a Payment Service:

• Payment is processed successfully.
• Order status updates correctly.
• Events propagate to downstream services (e.g., notifications).

---

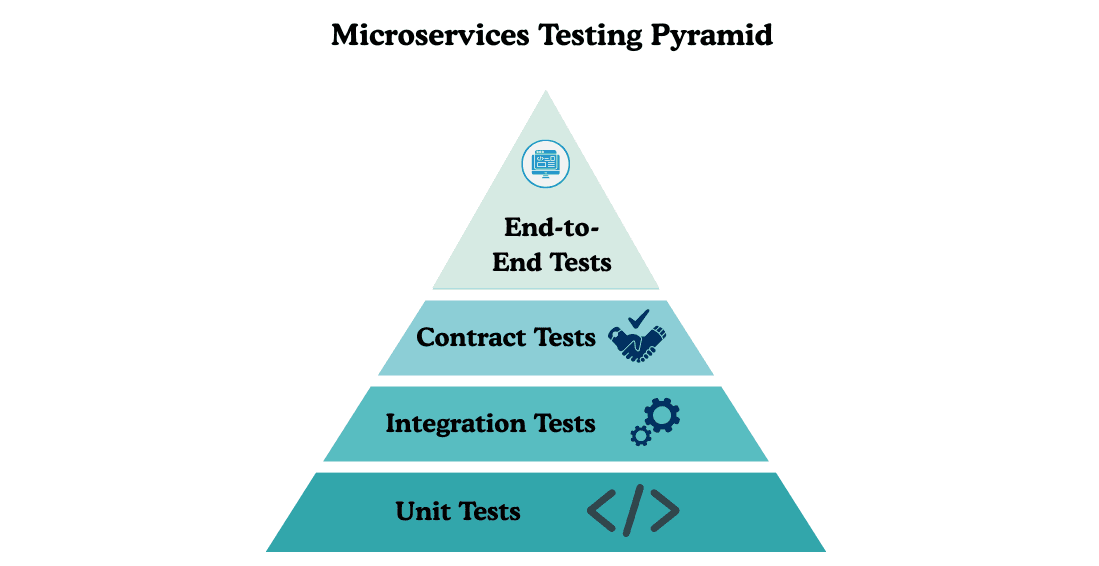

Microservices Testing Pyramid

The testing pyramid helps organize microservices tests efficiently, balancing speed, coverage, and reliability:

• Unit Tests → Test individual classes or methods. Fast, isolated, and run frequently.
• Integration Tests → Verify interactions between multiple services and infrastructure (databases, message brokers). Catch real integration issues early.
• Contract Tests → Ensure consumer-provider API agreements are met. Prevent breaking changes between teams or services.
• End-to-End Tests → Test the entire system with all services working together in production-like scenarios. Slowest but most comprehensive.

Integration tests sit in the middle, catching real issues without running the full system, making them ideal for CI/CD pipelines.

---

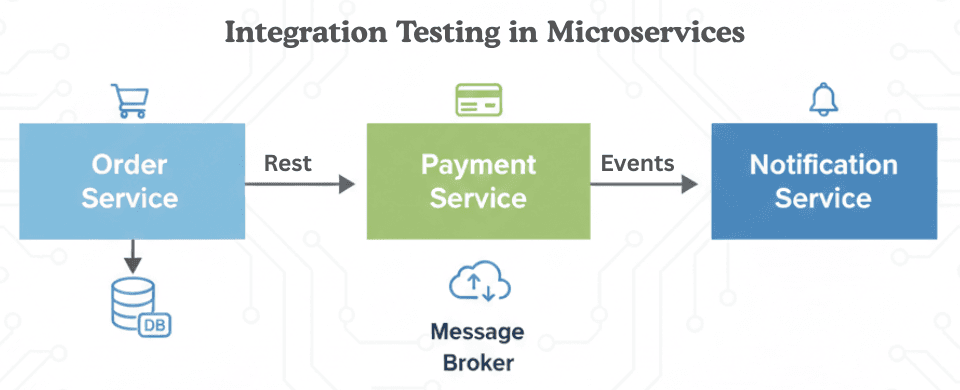

Microservices Integration Testing Architecture

Integration testing in microservices focuses on real interactions between independently running services.

Key Points:

• Each service runs with its own database and configuration.
• Services communicate via REST, gRPC, or messaging systems (Kafka, RabbitMQ).
• Tests verify real-world interactions, not just mocked behavior.

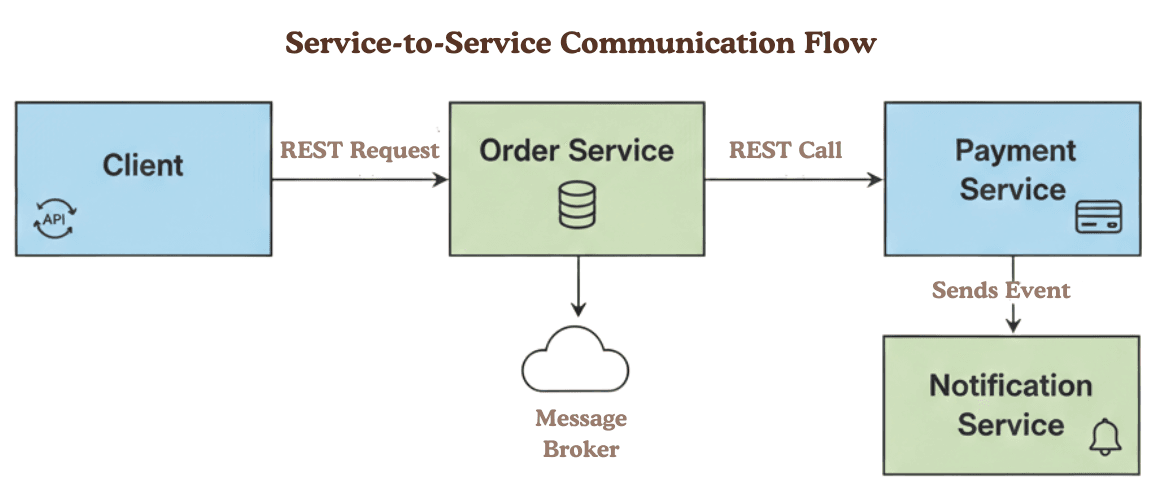

Example Architecture:

[Order Service] →REST →[Payment Service] → Kafka →[Notification Service]

• Integration tests validate:
  • REST API calls between services
  • Database updates per service
  • Event/message delivery across the system

---

Service-to-Service REST Integration Testing

REST API integration ensures services communicate correctly.

Tools: WebClient, Feign, MockMvc, WebTestClient

What to test:

• HTTP status codes & headers
• Request/response formats (JSON, XML)
• Error handling & validation
• Timeouts, retries, failed requests

Example:

@SpringBootTest
@AutoConfigureMockMvc
classOrderServiceIT {
@Autowiredprivate MockMvc mockMvc;

@Test
voidshouldCreateOrderAndProcessPayment()throws Exception {
        mockMvc.perform(post("/orders")
                .contentType(MediaType.APPLICATION_JSON)
                .content("{\\"userId\\":1,\\"amount\\":100}"))
               .andExpect(status().isCreated())
               .andExpect(jsonPath("$.status").value("PAID"));
    }
}

---

Event-Driven Integration Testing

Microservices often rely on messaging systems like Kafka or RabbitMQ.

Integration tests should:

• Validate producer → consumer workflows
• Handle Dead Letter Queues (DLQ) and retries
• Ensure events propagate correctly

Example:

@Test
voidshouldConsumeEvent() {
    kafkaTemplate.send("orders-topic", orderEvent);
// Assert consumer processed event
}

---

Using Testcontainers in Microservices

Testcontainers allows running real databases and services in Docker during integration tests.

Benefits:

• Production-like, isolated environment
• Safe orchestration of service dependencies
• Supports PostgreSQL, MySQL, Redis, Kafka, MongoDB, etc.

Example: PostgreSQL container

@Testcontainers
@SpringBootTest
classOrderRepositoryIT {

@Container
static PostgreSQLContainer<?> postgres =newPostgreSQLContainer<>("postgres:15");

@DynamicPropertySource
staticvoidproperties(DynamicPropertyRegistry registry) {
        registry.add("spring.datasource.url", postgres::getJdbcUrl);
    }
}

---

Mocking External Services

Use WireMock to simulate third-party APIs:

• Enables partial integration testing
• Tests failures, slow responses, and timeouts
• No reliance on external systems

Example:

stubFor(get("/inventory/1")
    .willReturn(aResponse()
    .withStatus(200)
    .withBody("{\\"available\\":true}")));

---

Contract Testing vs Integration Testing

Both Contract Testing and Integration Testing are important in microservices, but they solve different problems.

Aspect	Contract Testing	Integration Testing
Purpose	Ensures API agreements between consumer and provider	Validates real interactions between services
Focus	API request & response structure	End-to-end service communication
Dependencies	Mocked provider or consumer	Real services & infrastructure
Detects	Breaking API changes	Network, config, data, and runtime issues
Speed	Fast	Medium
Tools	Pact, Spring Cloud Contract	Spring Boot Test, Testcontainers, WireMock
Best Use Case	Prevent API breaking changes	Verify services work together correctly

---

Data Consistency & Transactions

• Each microservice owns and manages its own database.
• Integration tests ensure eventual consistency between services.
• Validate Saga patterns or orchestration flows for multi-service transactions.
• Confirm data stays correct during failures, retries, and rollbacks.

---

Resilience & Failure Testing

Resilience testing ensures your microservices stay stable even when things go wrong in production.

• Simulate network failures, timeouts, and slow responses
• Test service crashes and temporary downtime
• Verify retry mechanisms, fallbacks, and circuit breakers work as expected

Example:

@Test
void shouldRetryOnFailure() {
    // Simulate a failed REST call
    // Verify retry logic or fallback behavior
}

---

Conclusion

Integration testing in microservices ensures that services, databases, and messaging systems work together correctly.

It helps to:

• Catch real production issues early
• Validate service-to-service interactions
• Handle failures and maintain data consistency

When done right, integration testing builds confidence, stabilizes releases, and makes microservices reliable and scalable.
