A WhatsApp-like chat application looks simple from the user's perspective:

User types a message → Sends it → Receiver gets it.

But a distributed messaging system must answer much harder questions:

• What happens if the receiver is offline?

• What if the sender loses the network after sending?

• What if a chat server crashes?

• How do we prevent duplicate messages?

• How do we preserve message ordering?

• How do multiple devices stay synchronized?

• How do we maintain millions of persistent connections?

These challenges make WhatsApp System Design a common system design interview problem.

This article designs a scalable WhatsApp-like messaging platform. It does not attempt to reproduce WhatsApp's private internal architecture.

Functional Requirements

Keep the initial scope focused on core messaging:

• Users can send one-to-one messages.

• Users can send group messages.

• Online users receive messages near real time.

• Offline users receive missed messages after reconnecting.

• Users can retrieve message history.

• Delivery and read receipts are supported.

• Multiple devices remain synchronized.

Secondary features may include presence, typing indicators, media sharing, push notifications, search, and end-to-end encryption.

Non-Functional Requirements

Important system qualities are:

• Low message-delivery latency

• High availability

• Durable message storage

• Horizontal scalability

• Fault tolerance

• Per-conversation ordering

• Multi-device consistency

• Secure communication

The main design principle is:

Real-time delivery makes chat fast; durable storage and synchronization make chat reliable.

Scale Estimation

Assume:

100 million daily active users
50 messages per active user per day

Total messages:

100M × 50
= 5 billion messages/day

Average throughput:

5,000,000,000 / 86,400
≈ 58,000 messages/second

Peak traffic may be several times higher.

However, raw message throughput is not the only challenge. A messaging platform may also need to maintain millions of long-lived client connections simultaneously.

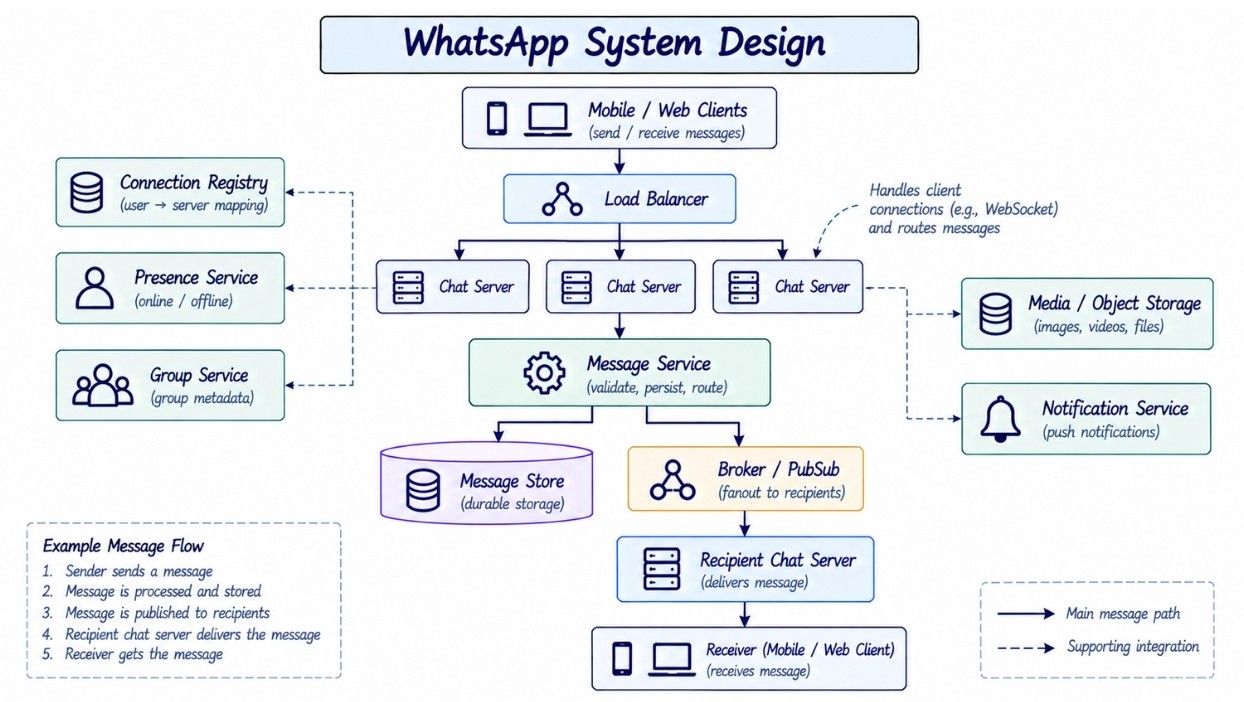

High-Level Architecture

A simplified architecture is:

                    Mobile / Web Clients
                            |
                            v
                     Load Balancer
                            |
                +-----------+-----------+
                |           |           |
                v           v           v
           Chat Server  Chat Server  Chat Server
                |           |           |
                +-----------+-----------+
                            |
                            v
                     Message Service
                       /          \
                      v            v
               Message Store   Broker / PubSub
                                    |
                                    v
                           Recipient Chat Server
                                    |
                                    v
                                 Receiver

Supporting services may include:

Authentication Service
User Service
Group Service
Presence Service
Connection Registry
Media Service
Notification Service
Object Storage
Cache
Search
Monitoring

The architecture should evolve only when requirements justify each component.

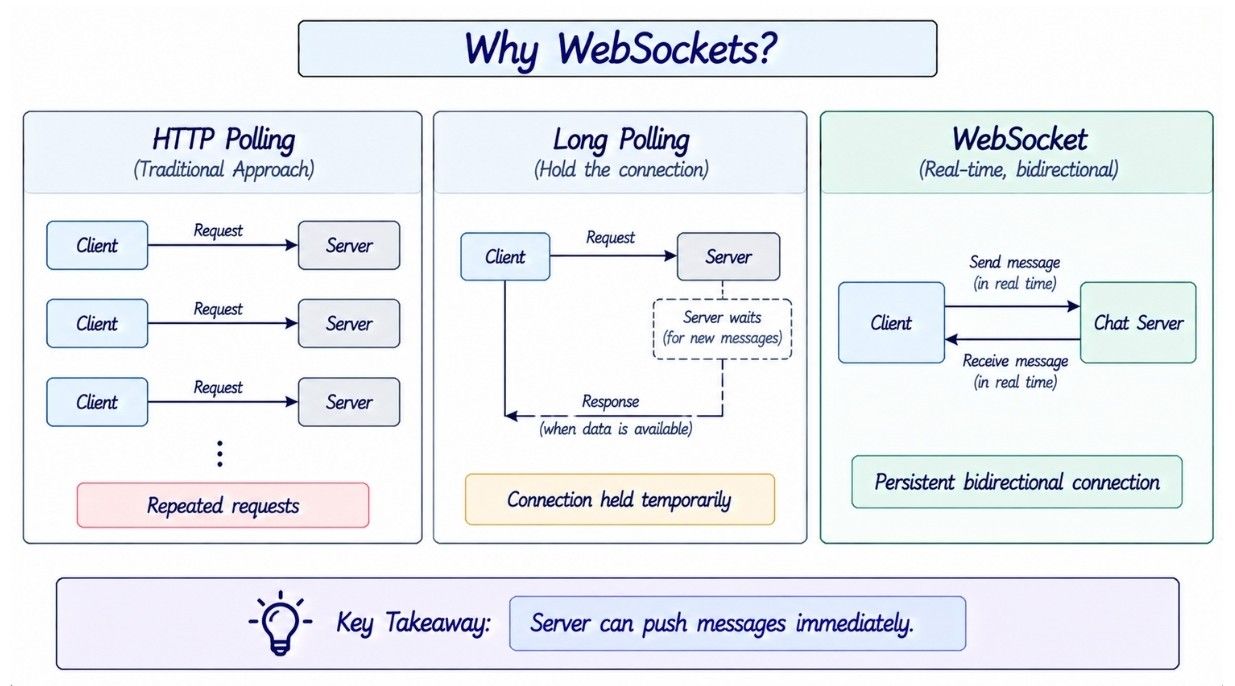

Why WebSockets?

A messaging application needs fast server-to-client delivery. Repeated HTTP polling works, but it becomes inefficient at large scale.

Why Not HTTP Polling?

With polling, clients repeatedly ask:

Client → Any new message?
Server → No

Client → Any new message?
Server → No

Client → Any new message?
Server → Yes

Suppose 10 million connected users poll every five seconds:

10,000,000 / 5
= 2 million requests/second

Most requests may contain no useful information.

Long Polling

Long polling improves this by keeping the HTTP request open until data is available:

Client
  |
  | GET /messages
  v
Server waits...
  |
New message arrives
  |
  v
Response

It is better than frequent polling, but a large chat application naturally benefits from persistent bidirectional communication.

WebSockets

A WebSocket maintains a long-lived bidirectional connection:

Client <====================> Chat Server
          Persistent
          Connection

The server can immediately push events to the client without waiting for another HTTP request.

For a WhatsApp-like messaging system, WebSockets are therefore a natural choice for real-time communication.

REST and WebSockets Together

Not every operation needs WebSockets.

Use HTTP/REST for operations such as:

• Login

• Profile management

• Creating conversations

• Fetching message history

• Group management

• Media upload setup

Use WebSockets for real-time events such as:

• New messages

• Delivery acknowledgements

• Read receipts

• Typing indicators

• Presence changes

Client
 |
 +------ HTTP ------> API Services
 |
 +---- WebSocket ---> Chat Servers

This keeps normal request-response APIs separate from long-lived real-time communication.

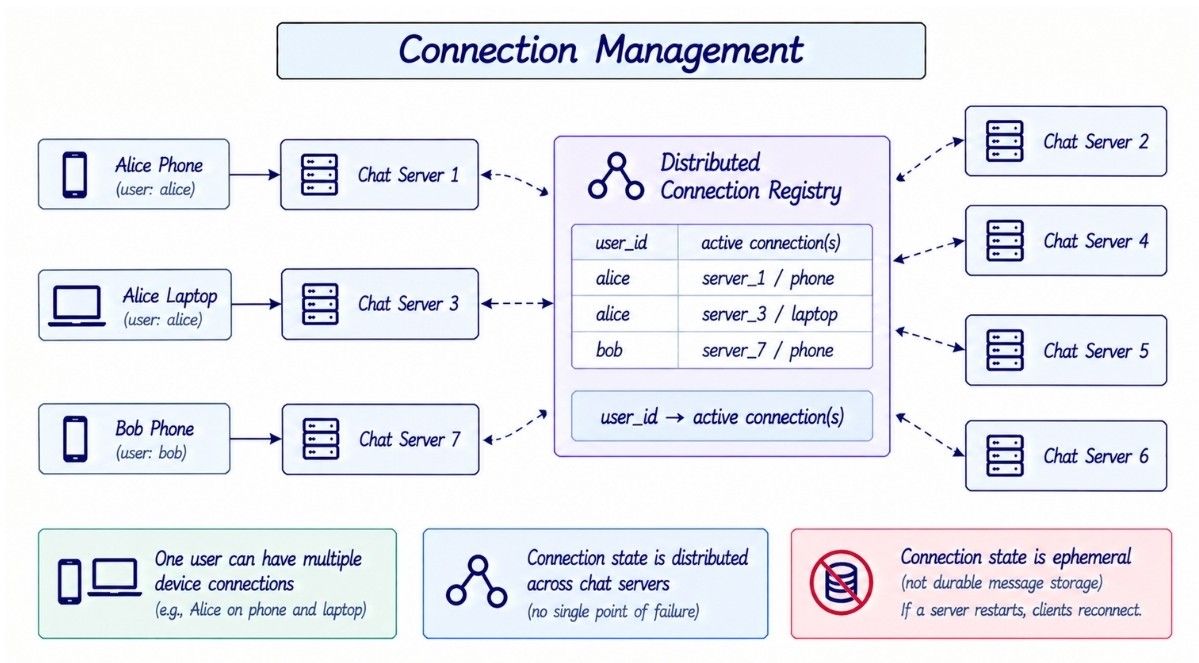

Connection Management

Suppose Alice establishes a WebSocket connection and the load balancer sends her to:

Chat Server 7

The system needs to know:

Alice → Chat Server 7
Bob   → Chat Server 21

Without this mapping, the system would not know which server currently owns Bob's live connection.

Connection Registry

Maintain a distributed registry:

user_id → active connection(s)

Example:

alice → server_7  / connection_82
bob   → server_21 / connection_91

A fast distributed key-value store is suitable because this information is ephemeral connection state, not durable business data.

If a chat server crashes, the client reconnects and the mapping can be recreated.

Multiple Devices

A user may be connected from several devices:

Alice
 |
 +--> Phone
 +--> Laptop
 +--> Tablet

The registry may therefore store:

alice
 |
 +--> server_7  / phone
 +--> server_12 / laptop
 +--> server_18 / tablet

Messages and read state may need to synchronize across all authorized devices.

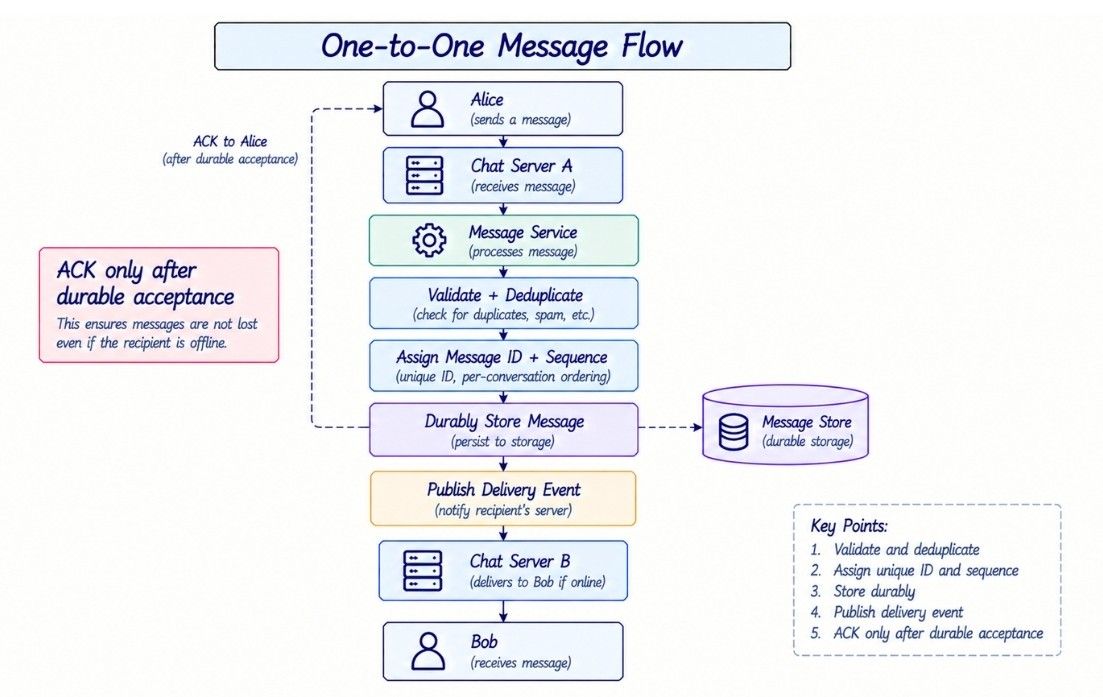

One-to-One Message Flow

Suppose Alice sends Bob:

"Hello Bob"

A basic flow is:

Alice
  |
  v
Alice's Chat Server
  |
  v
Message Service
  |
  v
Authenticate + Validate
  |
  v
Deduplicate
  |
  v
Assign Message ID + Sequence
  |
  v
Persist Message
  |
  v
Route Delivery Event
  |
  v
Bob's Chat Server
  |
  v
Bob

The critical rule is:

Do not consider a message safely accepted until it reaches the system's defined durability point.

Message Send Event

A WebSocket message may look like:

{
  "type": "message.send",
  "conversation_id": "conv_123",
  "client_message_id": "alice_987",
  "content": "Hello Bob"
}

The server should verify:

• Authentication

• Conversation membership

• Message size

• Content type

• Rate limits

• Business rules

The backend then assigns its canonical message information.

Message Model

A simplified message may contain:

message_id
conversation_id
sender_id
client_message_id
sequence_number
message_type
content
created_at

Example:

message_id        = msg_891
conversation_id   = conv_123
sender_id         = alice
client_message_id = alice_987
sequence_number   = 5001
message_type      = TEXT
content           = "Hello Bob"

message_id uniquely identifies the message.

sequence_number tells clients where the message belongs inside the conversation.

Core Data Model

The main entities are users, conversations, conversation members, and messages.

User

user_id
name
profile_photo
created_at

Conversation

conversation_id
conversation_type
created_at

Conversation types:

DIRECT
GROUP

ConversationMember

conversation_id
user_id
role
joined_at
last_read_sequence

Message

message_id
conversation_id
sender_id
client_message_id
sequence_number
message_type
content
created_at

Choosing Message Storage

At smaller scale, a relational database may be completely sufficient.

The important question is not:

Which database is most scalable?

The important question is:

What are the application's access patterns?

One of the most common reads is:

Get the newest messages for conversation X.

At very large scale, append-friendly distributed storage may become attractive because chat messages:

• Are continuously appended

• Are rarely modified

• Are usually read by conversation

• Need horizontal partitioning

Start with requirements and access patterns before choosing a database technology.

Partitioning Messages

A natural partition key is:

conversation_id

because most reads are conversation-oriented.

Shard 1
  conv_1
  conv_8

Shard 2
  conv_2
  conv_9

Shard 3
  conv_3
  conv_10

This keeps messages from the same conversation logically close.

However, extremely large or highly active groups can create hot partitions, which may require special handling.

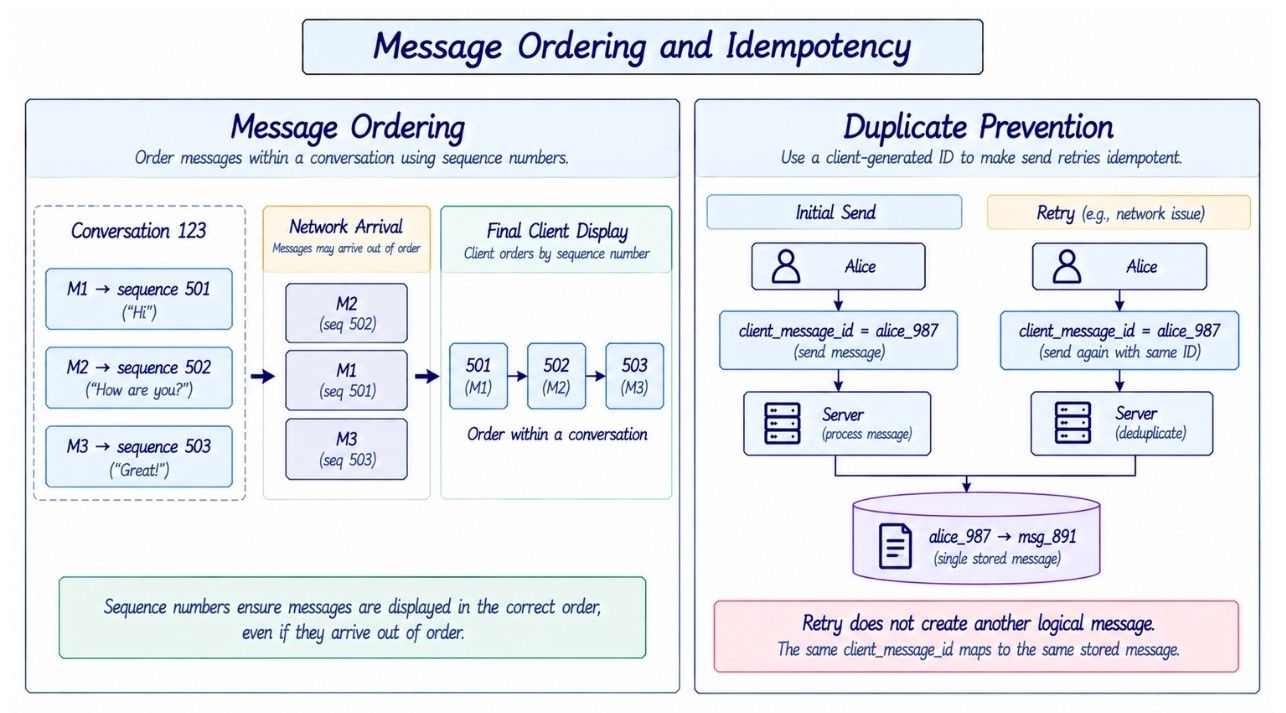

Message Ordering

Suppose Alice sends:

M1 = "Hi"
M2 = "How are you?"

Distributed networks can cause M2 to arrive before M1.

We do not need one global message order for every conversation in the entire platform.

Instead, preserve ordering within each conversation.

Per-Conversation Sequence Numbers

Example:

conversation_123

M1 → sequence 501
M2 → sequence 502
M3 → sequence 503

The client can display messages in:

501
502
503

even if network delivery temporarily arrives out of order.

This avoids expensive global coordination.

Idempotency and Duplicate Messages

Suppose the server stores Alice's message successfully, but the ACK is lost.

Alice sees a timeout and retries.

Without deduplication, the system might store:

Hello
Hello

Instead, the client sends a stable:

client_message_id = alice_987

Both the original request and retry contain the same ID:

Alice → alice_987 → Server
Alice → alice_987 → Server

The server recognizes that this logical message already exists and returns the existing result rather than inserting another copy.

A durable uniqueness constraint should enforce this behavior.

Message States and ACK Semantics

A common state model is:

SENDING
   |
   v
SENT
   |
   v
DELIVERED
   |
   v
READ

The exact product semantics must be defined.

SENT

The messaging backend has durably accepted the message.

DELIVERED

At least one intended recipient device has received it according to the product's delivery semantics.

READ

The recipient has reported that the message or conversation has been read.

Do Not ACK Too Early

Unsafe:

Alice
  |
  v
Server
  |
ACK "sent"
  |
Server crashes before persistence

Safer:

Receive Message
      |
      v
Durably Accept Message
      |
      v
ACK Sender

The exact durability point may be a database commit, durable log, or another reliable acceptance mechanism.

The important part is that the system defines it explicitly.

Offline Users and Synchronization

Suppose Bob is offline when Alice sends a message.

Alice
  |
  v
Message Service
  |
  v
Message Store
  |
Bob connected?
 /          \
Yes          No
 |            |
Realtime    Keep durable message
delivery         |
                 v
          Optional push notification

When Bob reconnects, the client synchronizes from its last known position.

Example:

Last synchronized sequence = 840

The server returns:

841
842
843
...

Conceptually:

GET /conversations/{id}/messages?after_sequence=840

This handles network disconnects, app restarts, device sleep, server failures, and missed real-time events.

The WebSocket is not the durable source of truth. The message store is.

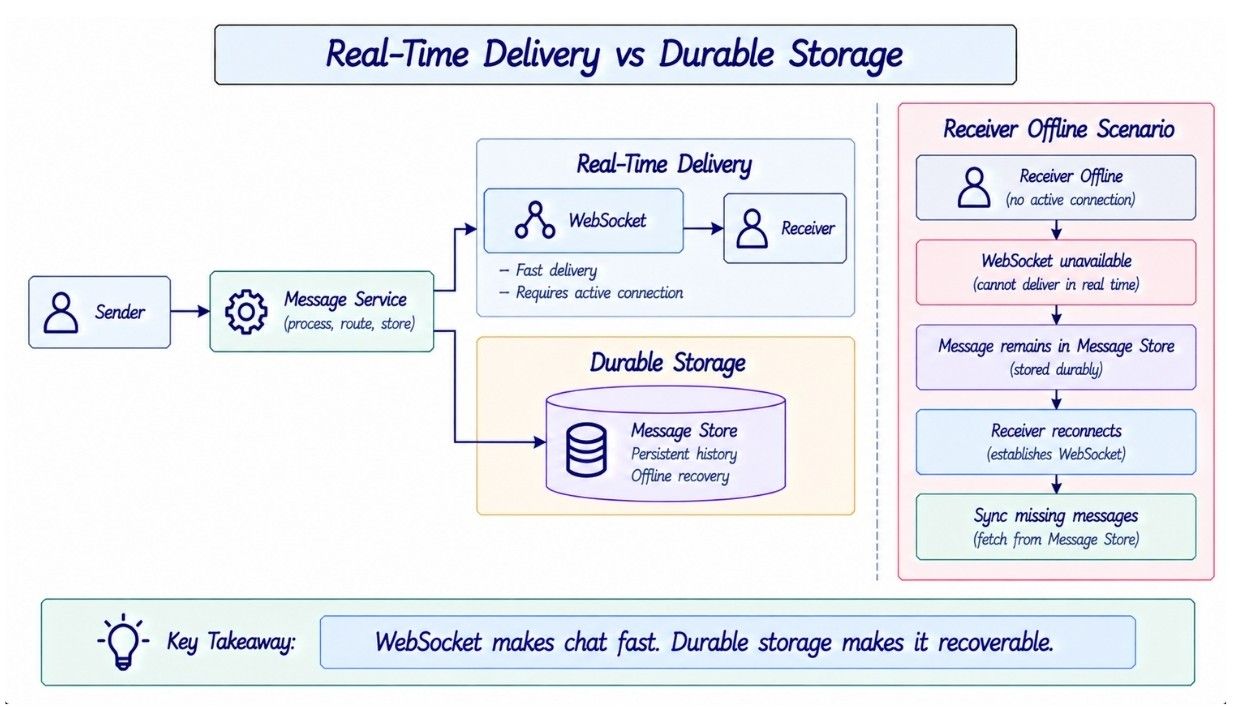

Real-Time Delivery vs Durable Storage

WebSocket and message storage have different responsibilities in a messaging system.

A complete messaging system uses both:

                 ┌── Real-time delivery ──> WebSocket ──> Receiver
Sender ──> Message Service
                 └── Durable storage ─────> Message Store

If the receiver is offline or the WebSocket connection fails, the message remains in durable storage and can be synchronized after the client reconnects.

WebSocket makes message delivery fast; durable storage makes message delivery recoverable and reliable.

Why Use Pub/Sub or a Message Broker?

Suppose:

Alice → Chat Server 1
Bob   → Chat Server 98

Chat Server 1 needs a way to deliver the event to the infrastructure serving Bob.

A broker or Pub/Sub layer can decouple servers:

Chat Server 1
      |
      v
Broker / PubSub
      |
      v
Chat Server 98

It can help with:

• Cross-server routing

• Buffering

• Fan-out

• Partitioning

• Asynchronous consumers

• Failure isolation

• Replay in architectures that support it

Do We Always Need Kafka?

No.

A smaller system may work with:

WebSocket Servers
       +
Message Database
       +
Connection Registry

Introduce a broker only when it solves a real problem such as cross-server routing, high throughput, fan-out, asynchronous processing, buffering, or consumer isolation.

Adding Kafka automatically without explaining why is a common system design mistake.

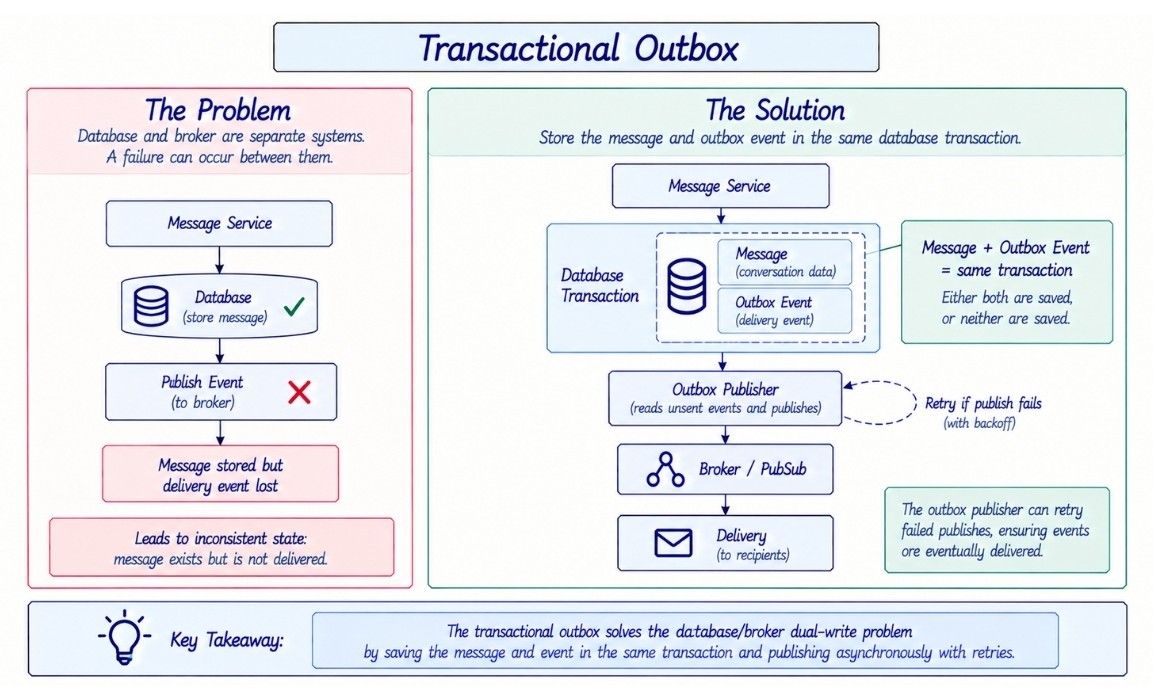

Database and Broker Dual-Write Problem

Suppose the Message Service performs:

1. Insert message into database
2. Publish delivery event

If the database insert succeeds but the process crashes before publishing:

Message exists
but
Realtime delivery event is missing

Publishing first creates the opposite risk.

Transactional Outbox

One solution is to write the message and event record in the same database transaction:

Database Transaction
   |
   +--> Insert Message
   |
   +--> Insert Outbox Event

Then:

Outbox Publisher
      |
      v
Message Broker

If the publisher crashes, unpublished outbox entries can be retried later.

This creates a reliable bridge between durable message state and asynchronous delivery.

Delivery Guarantees

Internal event processing commonly uses:

At-least-once delivery

This means an event may occasionally be processed more than once, so consumers need idempotency.

Do not casually claim true end-to-end exactly-once delivery across:

Client
Network
Server
Database
Broker
Receiver

A more realistic design is:

At-least-once infrastructure + stable IDs + deduplication + idempotency = effectively-once user-visible behavior where possible.

Read Receipts and Unread Counts

Suppose Bob has read through:

sequence = 500

Instead of storing one read row for every message, store:

bob.last_read_sequence = 500

Messages at or below that sequence are considered read according to the conversation semantics.

Unread Count

If:

latest_sequence    = 550
last_read_sequence = 500

a simplified unread count is:

550 - 500 = 50

Real systems may adjust this for deleted messages, system events, membership changes, and filtered message types.

Typing Indicators and Presence

Not every real-time event needs durable storage.

Typing Indicators

Typing is ephemeral:

Alice
  |
  v
Chat Server
  |
  v
Realtime Typing Event
  |
  v
Bob

If one typing event is lost, expensive recovery is usually unnecessary.

Presence

Presence answers:

Is Alice online?
When was Alice last active?

A simple approach:

Connection established
        |
        v
Presence = ONLINE
        |
        v
Periodic heartbeat
        |
        v
Refresh TTL
        |
No heartbeat
        |
        v
TTL expires
        |
        v
Presence = OFFLINE

Presence state can live in a fast ephemeral distributed store.

Presence Fan-Out

Do not broadcast Alice's presence to every user.

Publish it only to users who need it, such as contacts, active conversation participants, or subscribed clients.

Last Seen Privacy

Presence is also a privacy problem.

A user may configure:

Everyone
Contacts
Nobody

The Presence Service should enforce these visibility rules.

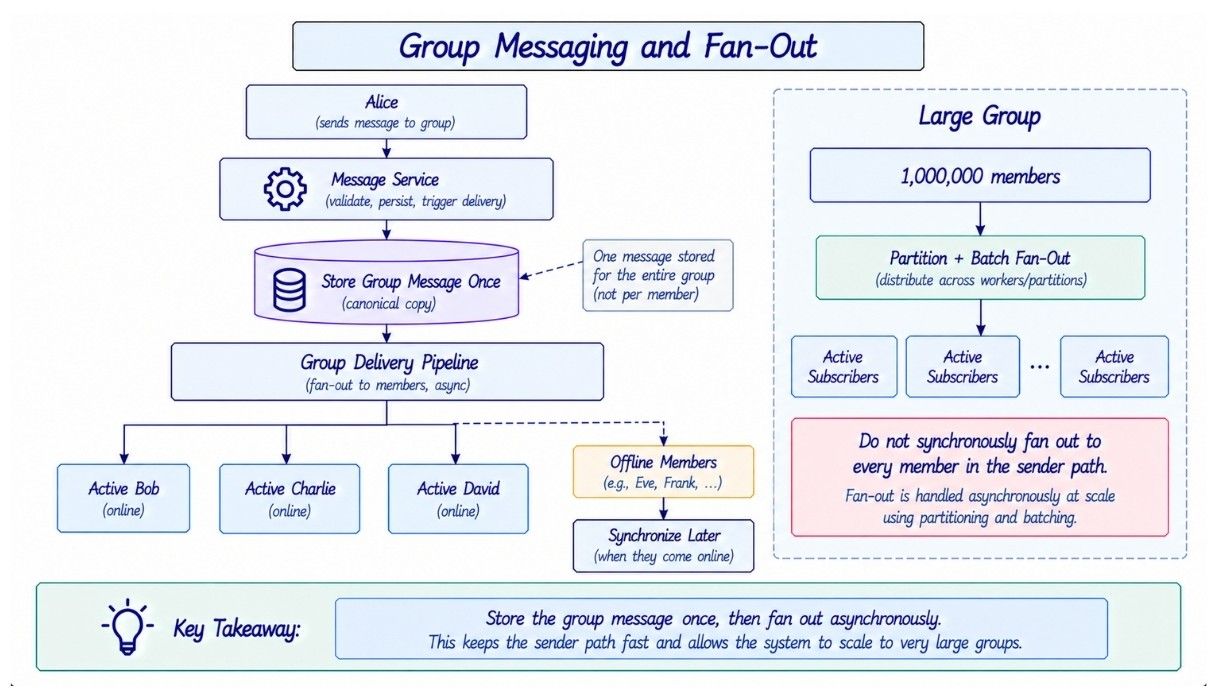

Group Messaging

Suppose Alice sends:

"Meeting at 5?"

to a group containing Alice, Bob, Charlie, and David.

Alice
  |
  v
Message Service
  |
  v
Store Message Once
  |
  v
Group Membership
  |
  +--> Bob
  +--> Charlie
  +--> David

Small groups are relatively straightforward. Very large groups create a fan-out problem.

Fan-Out on Write

Generate recipient delivery work when the message is sent:

Group Message
     |
     +--> User 1
     +--> User 2
     +--> User 3
     ...

Advantages:

• Fast recipient reads

• Simple delivery preparation

Disadvantages:

• Expensive writes

• Potentially massive work for huge groups

Fan-Out on Read

Store the group message once:

Group Message
      |
      v
Shared Group History
      |
      +--> User reads
      +--> User reads

Advantages:

• Cheaper write path

• Better for huge groups

Disadvantages:

• More work during reads

• Real-time active-user delivery still needs another mechanism

Hybrid Fan-Out

A practical system can combine both approaches.

For smaller groups, push aggressively to members.

For very large groups:

Store once
     ↓
Push to active subscribers
     ↓
Offline users fetch later

The choice depends on group size, latency requirements, and infrastructure cost.

Hot Group Problem

Suppose a group has:

1,000,000 members

and all activity maps to one conversation_id partition.

That conversation can become a storage or broker hot spot.

Possible approaches include:

• Sub-partitioning extremely large groups

• Separating message storage from delivery fan-out

• Hierarchical fan-out

• Batching recipient work

• Prioritizing active members

• Allowing offline users to synchronize later

Sub-partitioning can make strict ordering harder, so this is a real scalability trade-off.

Media Messages

Large files should not be stored directly inside the primary message database.

Examples include images, videos, audio, and documents.

A better architecture is:

Client
  |
  v
Media Service
  |
  v
Object Storage

The message stores only a reference:

{
  "message_type": "VIDEO",
  "media_id": "media_782"
}

Media Upload Flow

A scalable flow is:

Client
  |
  | Request upload
  v
Media Service
  |
  | Signed upload instruction
  v
Client
  |
  v
Object Storage

After the upload succeeds, the client sends a chat message containing the media reference.

This prevents large files from flowing through chat servers.

CDN for Media

Media can be distributed through a CDN:

Object Storage
      |
      v
     CDN
   /  |  \
India US Europe

This improves download latency and reduces origin bandwidth.

Push Notifications

When Bob is offline:

Message Service
      |
      v
Notification Service
      |
      v
Push Provider
      |
      v
Bob's Phone

A push notification tells the device that new activity exists.

It is not the durable source of the message.

When Bob opens the application, the client synchronizes with the messaging backend.

Reconnection and Failure Recovery

Mobile connections frequently move between Wi-Fi, cellular networks, and offline states.

A reconnect flow may look like:

Reconnect
   |
   v
Authenticate
   |
   v
Restore WebSocket
   |
   v
Send sync position
   |
   v
Fetch missing messages

Reconnection Storms

Suppose a regional network outage affects five million users.

When connectivity returns, they should not all reconnect simultaneously.

Use:

Exponential Backoff
+
Jitter

Example:

Client A → 1.2 sec
Client B → 2.7 sec
Client C → 4.1 sec

This spreads recovery load across time.

Chat Server Failure

Suppose:

Alice → Server 7

and Server 7 crashes.

Alice reconnects:

Alice
  |
  v
Load Balancer
  |
  v
Server 15

The registry updates to:

Alice → Server 15

The client then synchronizes missing messages from durable storage.

Because durable messages were not stored only in Server 7's memory, message history survives the crash.

Sticky Sessions

A load balancer may use sticky routing to keep reconnecting clients on the same server when possible.

However, system correctness should not depend on:

Alice must always connect to Server 7

Chat servers should remain replaceable.

Connection ownership should be maintained through distributed state rather than assumed server affinity.

Load Balancing WebSocket Servers

WebSocket servers should be balanced using more than raw connection count.

Important signals include:

• Active connections

• Memory consumption

• CPU

• Network bandwidth

• Messages per second

• Connection churn

For example:

Server A:
100,000 mostly idle connections

Server B:
30,000 highly active connections

These servers may have very different resource requirements.

Backpressure

Suppose one recipient connection receives:

10,000 events

but can transmit only:

1,000 events/second

One slow client must not consume unlimited server memory.

Possible controls include:

• Bounded per-connection buffers

• Disconnecting extremely slow clients

• Dropping ephemeral events

• Preserving durable messages for later synchronization

A typing event may be dropped.

A durable chat message should not simply disappear.

Rate Limiting, Spam, and Abuse

Rate limiting can protect the system by dimensions such as:

user_id
device_id
IP address
conversation_id

Possible limits include:

• Messages per second

• New conversations per minute

• Media uploads per hour

• Group invitations per day

A real messaging platform may also need:

• Block lists

• User reports

• Spam detection

• Suspicious URL detection

• Media scanning

• Abuse controls

Non-critical analysis can run asynchronously so it does not unnecessarily slow the main messaging path.

Authentication and Authorization

Before accepting:

message.send

the system must verify:

Who is the sender?
        ↓
Is the sender a member of this conversation?
        ↓
Can the sender perform this action?

The same applies to message-history APIs.

For example:

GET /conversations/123/messages

must verify that the requester is allowed to access the conversation.

Knowing a conversation ID is never sufficient authorization.

End-to-End Encryption

With end-to-end encryption, message content is encrypted on the sender's authorized device and decrypted only by authorized recipient devices.

Alice Device
    |
  Encrypt
    |
    v
Ciphertext
    |
    v
Server
    |
    v
Ciphertext
    |
    v
Bob Device
    |
  Decrypt

The messaging infrastructure transports encrypted content without requiring plaintext access.

E2EE adds complexity around:

• Key management

• Multi-device synchronization

• Device replacement

• Group membership changes

• Backups

• Search

• Moderation

• Message history recovery

The central trade-off is:

Privacy
  vs
Server-side functionality

Message Search

Without E2EE limitations, search indexing may happen asynchronously:

Message Store
     |
     v
Indexing Event
     |
     v
Search Index

Message delivery does not need to wait for indexing.

The message can therefore be delivered immediately while becoming searchable shortly afterward.

This is a reasonable use of eventual consistency.

With E2EE, search may instead require on-device indexing or another privacy-preserving design.

Message Editing and Deletion

Messages may change after their original delivery, so clients need a way to synchronize those updates.

Editing

Suppose Alice changes:

Meet at 5

to:

Meet at 6

The message may contain:

message_id
content/version
edited_at

Connected participants receive an update event, while offline devices receive the latest state during synchronization.

Deletion

Instead of immediately removing every copy, the system may write a tombstone:

message_id = 123
deleted = true

Clients can display:

This message was deleted

Background cleanup can later remove eligible content according to retention rules.

Retention

Different products may support:

• Permanent history

• Time-based retention

• Ephemeral messages

• Tenant-specific retention

• Disappearing messages

Old data may be archived, compacted, deleted, or moved to cheaper storage.

Retention should be included in storage and compliance planning.

Caching

Good cache candidates include:

• User profiles

• Conversation metadata

• Group membership

• Presence

• Connection mappings

• Recent conversation information

But:

Cache
≠
Durable Message Source

Losing the cache should primarily affect performance, not destroy chat history.

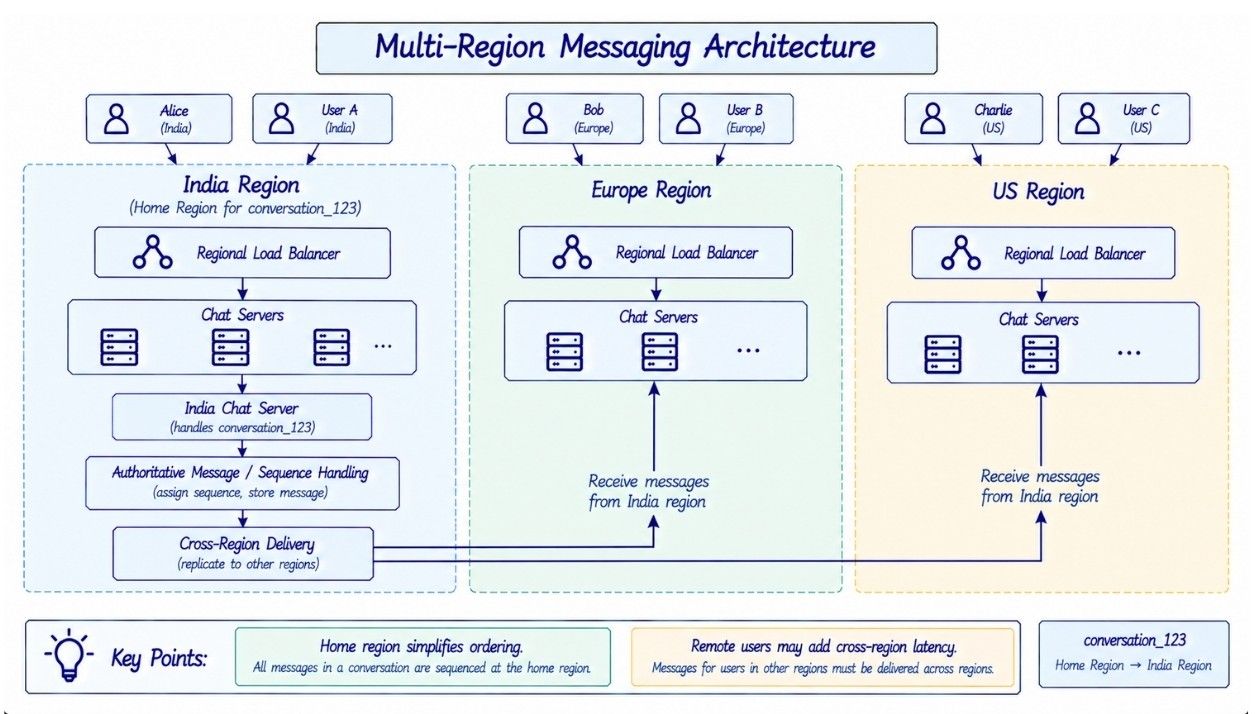

Multi-Region Architecture

A global messaging platform needs to keep connection infrastructure reasonably close to users.

For example:

India Users  → India Region
Europe Users → Europe Region
US Users     → US Region

The difficult case is a conversation whose participants are in different regions.

Home Region

One possible model assigns each conversation a home region:

conversation_123
→ ap-south

That region owns authoritative sequencing and write operations for the conversation.

Advantages:

• Simpler ordering

• Simpler write ownership

Disadvantage:

• Remote participants may incur additional cross-region latency

Active-Active Trade-Off

Allowing several regions to accept writes for the same conversation can reduce local write latency.

But it introduces:

• Concurrent write coordination

• Ordering complexity

• Consistency complexity

Start with the simpler ownership model and introduce active-active writes only if requirements justify the additional complexity.

Data Residency

Some deployments may require certain data to remain in specific geographic regions.

This can affect:

• Message placement

• Replication

• Backups

• Search

• Analytics

• Disaster recovery

Observability

Important metrics include:

• Active WebSocket connections

• Connection attempts per second

• Reconnection rate

• Messages sent per second

• Message persistence latency

• Sender ACK latency

• Sender-to-recipient delivery latency

• Broker lag

• Failed deliveries

• Retry rate

• Database P95/P99 latency

• Hot partitions

• Presence-store load

• Media upload failures

• Push-notification failures

A useful metric is:

delivery_latency
=
recipient_delivery_time
-
sender_accept_time

Monitor percentiles such as:

P50
P95
P99

rather than averages alone.

Failure Example: Real-Time Delivery Is Lost

Suppose Alice sends message M1.

The Message Service persists it, and a delivery event is published.

Bob's Chat Server crashes before delivering the message.

Bob later reconnects and reports:

last_received_sequence = 900

The server finds:

M1 sequence = 901

and returns it during synchronization.

This demonstrates why:

Real-Time Delivery
        +
Durable Synchronization

must work together.

Complete One-to-One Message Flow

Alice
  |
  | message.send
  v
Chat Server A
  |
  v
Authentication / Validation
  |
  v
Message Service
  |
  +----> Deduplicate client_message_id
  |
  +----> Assign message_id / sequence
  |
  +----> Persist message
  |
  +----> Write outbox event
  |
  v
ACK Alice

Outbox Publisher
  |
  v
Broker / PubSub
  |
  v
Connection Registry
  |
Bob online?
 /       \
Yes       No
 |         |
 v         v
Server B   Optional Push Notification
 |
 v
Bob
 |
 v
Delivery ACK

The sender request path should not wait for every downstream delivery operation to finish.

Complete Group Message Flow

Alice
  |
  v
Chat Server
  |
  v
Message Service
  |
  v
Verify Group Membership
  |
  v
Assign Conversation Sequence
  |
  v
Store Message Once
  |
  v
Group Delivery Pipeline
  |
  +----> Active Bob
  |
  +----> Active Charlie
  |
  +----> Active David
  |
  +----> Offline members synchronize later

For very large groups, delivery work should be partitioned and batched rather than executed synchronously inside the sender's request path.

Final WhatsApp High-Level Design

Putting the major components together gives us:

                          +----------------+
                          | Mobile / Web   |
                          | Clients        |
                          +-------+--------+
                                  |
                                  v
                          +----------------+
                          | Global LB /    |
                          | Gateway        |
                          +-------+--------+
                                  |
                    +-------------+-------------+
                    |             |             |
                    v             v             v
               Chat Server   Chat Server   Chat Server
                    |             |             |
                    +-------------+-------------+
                                  |
                                  v
                          +----------------+
                          | Message Service|
                          +-------+--------+
                                  |
                    +-------------+-------------+
                    |             |             |
                    v             v             v
              Message Store   Outbox        Group Service
                                  |
                                  v
                         Broker / PubSub
                                  |
                                  v
                        Connection Registry
                                  |
                                  v
                      Recipient Chat Server
                                  |
                                  v
                               Client

Supporting systems include authentication, presence, notifications, media storage, CDN, rate limiting, search, and monitoring.

HLD vs LLD

System design interviews usually begin with the overall distributed architecture before moving into classes or implementation details.

A possible LLD model may contain:

User
Conversation
DirectConversation
GroupConversation
ConversationMember
Message
TextMessage
MediaMessage
MessageRepository
MessageService
PresenceService
DeliveryService

If an interviewer asks "Design WhatsApp", begin with HLD unless they explicitly request object-oriented or low-level design.

How the Architecture Evolves

A strong design should evolve with scale instead of starting with every possible component.

Stage 1
Client
  ↓
Single Chat Server
  ↓
SQL Database

Stage 2
Clients
  ↓
WebSockets
  ↓
Chat Server

Stage 3
Load Balancer
  ↓
Multiple Chat Servers
  ↓
Connection Registry
  ↓
Distributed Message Store

Stage 4
Broker / PubSub
Presence Service
Group Service
Media Service
Push Notifications
Transactional Outbox

Stage 5
Multi-Region Routing
Conversation Partitioning
Hot-Group Handling
Regional Storage
Cross-Region Delivery
Advanced Observability

The principle is simple:

Add architectural complexity when a requirement or bottleneck justifies it.

Most Common WhatsApp System Design Interview Questions

How Would You Design WhatsApp?

Use persistent WebSocket connections between clients and horizontally scalable chat servers.

Persist messages through a Message Service, maintain distributed connection mappings, route delivery events between servers, and synchronize missing messages from durable storage after reconnects.

Add presence, groups, media, notifications, idempotency, partitioning, and multi-region architecture as requirements expand.

Why Use WebSockets?

Chat requires frequent bidirectional real-time communication.

WebSockets allow servers to push messages immediately over long-lived connections instead of requiring repeated polling.

WebSocket vs HTTP Polling?

Polling repeatedly sends requests even when there is no new data.

WebSockets maintain persistent bidirectional communication and are better suited to high-frequency real-time chat.

How Do You Store Billions of Messages?

Partition message storage horizontally using conversation-oriented access patterns.

Use append-friendly storage, pagination, retention, and archival where required. Store large media objects separately.

How Do You Maintain Message Ordering?

Maintain ordering where it matters: normally inside a conversation.

Assign conversation-level sequence numbers rather than requiring one global ordering sequence for the entire platform.

How Do You Handle Offline Users?

Store messages durably and optionally send push notifications.

When the user reconnects, synchronize messages after the client's last known sequence or checkpoint.

How Do You Prevent Duplicate Messages?

The client sends a stable client_message_id, and retries reuse the same ID.

The server deduplicates repeated submissions and returns the previously created message.

What Happens If a Chat Server Crashes?

Connected users reconnect to healthy servers, connection mappings are recreated, and missing messages are recovered from durable message storage.

How Do You Track Online Users?

Maintain ephemeral presence based on active connections and heartbeats.

Use TTL expiration so stale presence records automatically become offline.

How Do You Scale Millions of WebSocket Connections?

Distribute connections across many chat servers.

Track ownership using a distributed connection registry and balance using connection count, CPU, memory, bandwidth, message rate, and connection churn.

How Do You Design Group Chat?

Persist the group message, verify membership, and deliver events to active members.

Small groups can use aggressive fan-out, while huge groups may use hybrid delivery.

How Do You Handle a Million-Member Group?

Do not synchronously create one million recipient operations inside the sender's request.

Store the message once, partition and batch delivery work, prioritize active subscribers, and let offline users synchronize later.

How Do Read Receipts Work?

Track each user's read progress for the conversation.

Instead of writing one read row per message, maintain a last_read_sequence where the semantics allow it.

How Do Typing Indicators Work?

Treat them as ephemeral real-time events.

They generally do not need durable storage or expensive retries.

How Do You Handle Media?

Upload large files through a media service to object storage.

Store only the media reference inside the message and distribute media through a CDN.

Do We Need Kafka?

Not necessarily.

Use a broker when cross-server routing, asynchronous consumers, buffering, fan-out, or scale justify it.

How Do You Guarantee Exactly-Once Delivery?

Do not promise true end-to-end exactly-once delivery.

Use at-least-once processing with stable identifiers, deduplication, idempotency, and durable synchronization to provide effectively-once user-visible behavior where possible.

How Do You Handle Multiple Devices?

Maintain several active connections for the same user.

Deliver events to relevant sessions and synchronize message and read state between authorized devices.

How Does End-to-End Encryption Affect the Design?

Encryption and decryption move to authorized client devices while servers transport ciphertext.

This increases complexity around key management, groups, backups, search, moderation, device replacement, and multi-device synchronization.

What If a Message Is Persisted but the Delivery Event Is Lost?

Use a reliable database-to-event bridge such as a transactional outbox.

If real-time delivery still fails, the recipient can recover the persisted message during synchronization.

How Do You Handle Reconnection Storms?

Use exponential backoff and jitter.

Also protect authentication and connection infrastructure with capacity controls and rate limiting.

How Would You Reduce Message Latency?

Keep connection infrastructure close to users, avoid unnecessary synchronous dependencies, route efficiently, cache ephemeral connection metadata, optimize durable writes, and monitor P95/P99 delivery latency.

Common Mistakes

Avoid these common design mistakes:

• Treating WebSockets as durable message storage.

• ACKing before the message reaches the defined durability point.

• Ignoring retries and duplicate messages.

• Using global ordering when conversation-level ordering is enough.

• Forgetting offline synchronization.

• Storing large media files in the primary message database.

• Keeping connection or presence state only inside one chat server.

• Fan-outing huge groups synchronously in the sender path.

• Adding Kafka or other infrastructure without a clear reason.

• Ignoring authorization, multi-device behavior, and failure recovery.

A strong design should explain what happens when servers crash, users reconnect, events are duplicated, or recipients are offline.

Final Thoughts

A WhatsApp-like system is not only about delivering messages quickly.

The core architecture is:

Sender
   ↓
Chat Server
   ↓
Message Service
   ↓
Durable Message Store
   ↓
Delivery / PubSub Layer
   ↓
Recipient Chat Server
   ↓
Receiver

Around this flow, the system adds connection tracking, ordering, idempotency, offline synchronization, group fan-out, media handling, presence, security, and failure recovery.

The key design principle is:

Real-time delivery makes messaging fast, while durable storage and synchronization make it reliable.
