Migration from Non-Modular Projects to JPMS

Introduction

Before Java 9, most Java applications were built using the traditional classpath-based architecture. These applications are commonly known as non-modular projects.

With the introduction of the Java Platform Module System (JPMS) in Java 9, Java applications became more secure, maintainable, and modular.

Migration to JPMS means converting an existing Java application into a module-based application where code is organized into well-defined modules with controlled dependencies and better encapsulation.

What is a Non-Modular Java Project?

A non-modular project is a traditional Java application that does not use the Java Module System (JPMS).

These applications usually:

• Use the classpath for dependency management.

• Do not contain a module-info.java file.

• Allow unrestricted access between packages.

• Lack strong encapsulation and module boundaries.

Common characteristics

• All classes are loaded through the classpath

• Dependencies are loosely managed

• Internal APIs can be accessed easily

• Reflection has broad access permissions

• Package boundaries are weak and less secure

Why Migrate to JPMS?

Migrating to the Java Module System (JPMS) helps modernize applications by improving structure, security, and maintainability.

Benefits of Migration

• Strong encapsulation between modules

• Better dependency management

• Improved application security

• Faster startup and optimized performance

• Better scalability for large applications

• Cleaner and more organized architecture

• More reliable configuration and module resolution

Challenges in Migrating Old Java Projects

Migrating older Java applications to JPMS is not always straightforward because most legacy systems were originally designed without modular architecture in mind.

Common migration challenges

• Large monolithic codebases that are difficult to split into modules

• Split packages across multiple JAR files or modules

• Reflection access issues caused by strong encapsulation

• Compatibility problems with older third-party libraries

• Cyclic dependencies between components

• Usage of internal JDK APIs restricted by JPMS

Step-by-Step Migration Process

Migrating a traditional Java application to JPMS is usually done gradually in multiple steps.

Step 1: Analyze Existing Project

Before starting migration, carefully examine the current application structure.

Things to check:

• Package organization

• Project dependencies

• Third-party libraries

• Usage of internal JDK APIs

This helps identify possible migration issues early.

Step 2: Create module-info.java

Add a module-info.java file to define the module structure.

Example

module com.app.core {
    exports com.app.service;
}

This defines:

• The module name

• Packages that can be accessed by other modules

Step 3: Define Module Dependencies

Use the requires keyword to declare dependencies between modules.

Example

module com.app.client {
    requires com.app.core;
}

This allows com.app.client to access exported packages from com.app.core.

Step 4: Handle Reflection Access

Many older frameworks rely heavily on reflection.

Since JPMS restricts reflective access by default, additional configuration may be required using:

• opens

• open module

• JVM flags like -add-opens

Example

module com.app.core {
    opens com.app.entity;
}

This allows reflection-based frameworks to access the package at runtime.

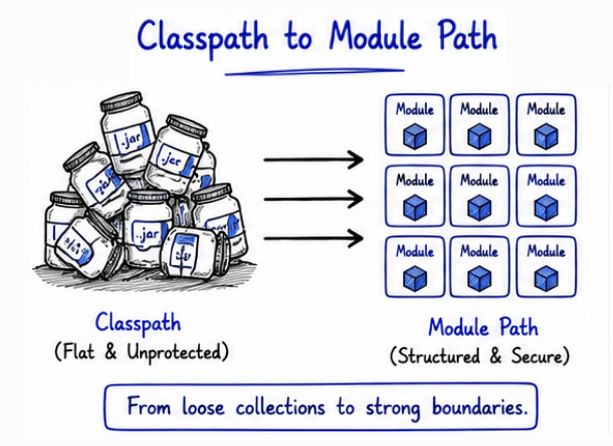

Step 5: Move from Classpath to Module Path

Traditional Java applications use the:

classpath

Modular Java applications use the:

module-path

The module path allows Java to manage dependencies and module boundaries more effectively.

Difference Between Classpath vs Module Path

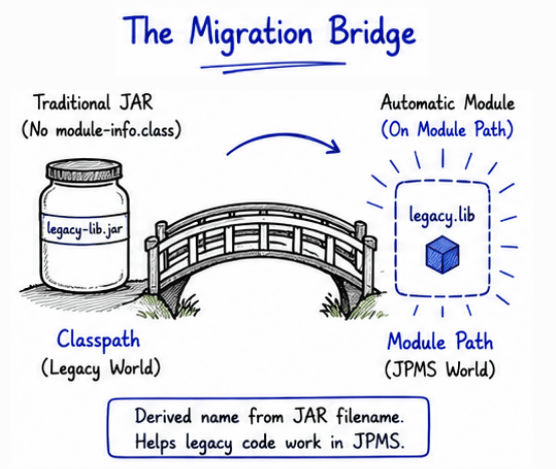

What are Automatic Modules?

When a non-modular JAR file is placed on the module path, JPMS automatically treats it as a module. Such modules are called automatic modules.

This feature helps older libraries work with JPMS even if they do not contain a module-info.java file.

Why automatic modules are useful

• Make migration easier for existing applications

• Provide backward compatibility with older libraries

• Support gradual migration to JPMS

• Allow legacy dependencies to work in modular projects

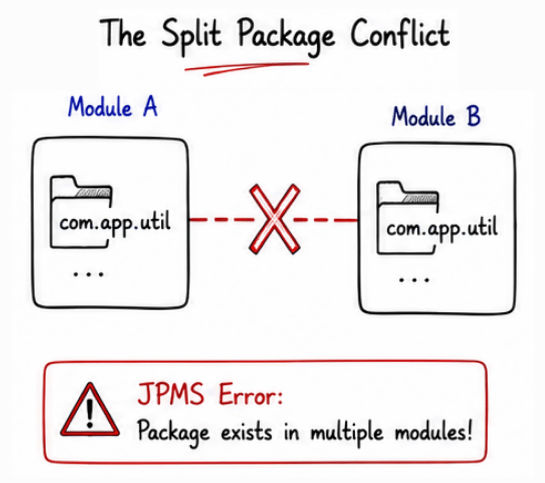

What is Split Package?

A split package occurs when the same package exists in multiple modules.

This is one of the most common problems during JPMS migration.

Example

com.app.util

existing inside multiple modules.

Why split packages are a problem

• Creates ambiguity during module resolution

• Makes dependency management difficult

• Breaks clear module boundaries

• JPMS does not allow split packages

Recommended solution

• Keep a package inside only one module

• Move shared code into a separate common module

• Maintain clear ownership of packages

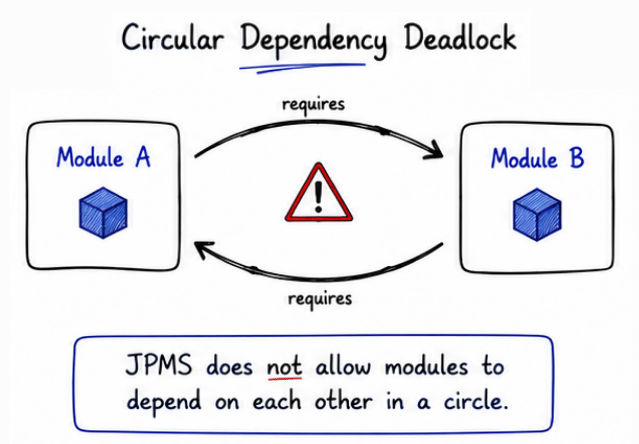

Cyclic Dependency Problem

JPMS does not allow circular dependencies between modules because they create unstable and tightly coupled architectures.

Example

Module A → Module B → Module A

Here:

• Module A depends on Module B

• Module B again depends on Module A

This creates a cyclic dependency, which JPMS does not permit.

Why cyclic dependencies are problematic

• Makes applications harder to maintain

• Creates tightly coupled modules

• Increases architectural complexity

• Causes dependency resolution issues

Common solutions

• Refactor the application architecture

• Move shared logic into a common/shared module

• Reduce unnecessary inter-module dependencies

• Keep modules focused on single responsibilities

Migration Strategies

Different projects follow different approaches when migrating from traditional Java applications to JPMS.

Incremental Migration

In incremental migration, modules are converted gradually instead of rewriting the entire application at once.

Why it is commonly used

• Safer for large enterprise applications

• Easier to manage and test

• Reduces migration risk

• Allows gradual adoption of JPMS

This approach is preferred for legacy systems and large codebases.

Full Modularization

In full modularization, the complete application is converted into modules in a single migration process.

Advantages

• Cleaner modular architecture

• Better dependency management from the beginning

• Consistent module structure across the application

Challenges

• Higher migration complexity

• More risky for large applications

• Requires extensive testing and refactoring

Real-World Migration Examples

Migration to JPMS is commonly seen in modern enterprise applications where better modularity and maintainability are important.

Some common examples include:

• Enterprise Java applications

• Banking and financial systems

• Large Spring-based applications

• Cloud-native backend systems

• Microservices-based architectures

Many organizations adopt JPMS to improve long-term scalability and dependency management.

Framework Compatibility Considerations

During migration, some frameworks may require additional configuration because JPMS restricts reflective and internal access by default.

Common framework-related issues

• Spring Framework → often requires reflective access using opens

• Hibernate → relies on deep reflection for entity mapping and proxies

• Jackson → requires runtime reflective access for serialization and deserialization

Conclusion

Migrating from non-modular projects to JPMS helps build modern Java applications with better structure, security, and maintainability.

Although migration can introduce challenges like:

• Reflection restrictions

• Split package issues

• Dependency management problems

• Framework compatibility issues

JPMS provides major advantages such as:

• Strong encapsulation

• Cleaner architecture

• Improved security

• Better scalability

• Easier maintenance for large applications
