Introduction to JDBC API

Java applications need to store and manage data, and most of this data is stored in databases. To connect Java applications with databases in a standard way, Java provides JDBC.

JDBC API is part of the java.sql package and provides important interfaces like Connection, Statement, and ResultSet to interact with databases.

? It allows Java programs to execute SQL queries and work with database data easily.

In simple words: JDBC helps Java talk to databases using SQL.

---

What is JDBC?

JDBC (Java Database Connectivity) is a Java API used to connect Java applications with databases and execute SQL queries.

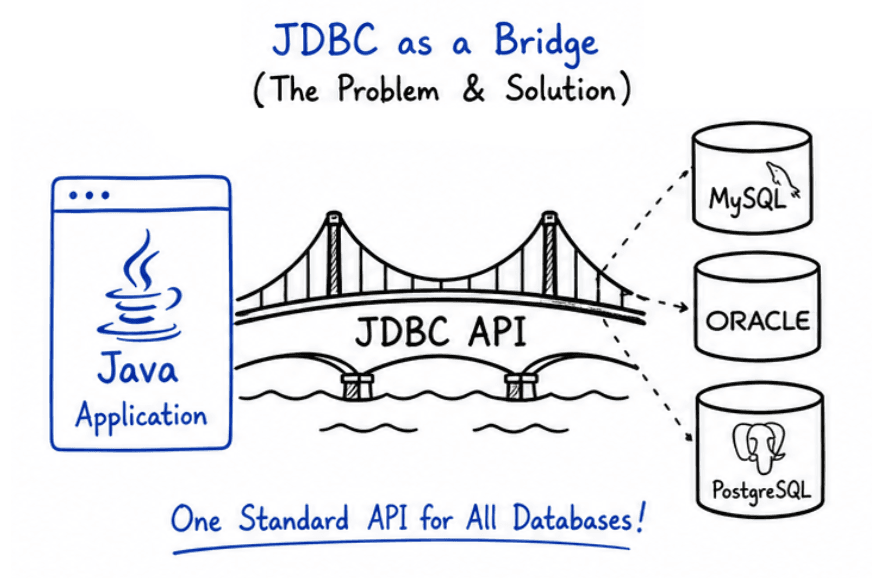

? It acts as a bridge between Java code and the database, enabling communication between them.

Simple Example (Basic JDBC Flow)

import java.sql.*;

public class Demo {
    public static void main(String[] args) throws Exception {

        // Step 1: Load Driver (optional in modern Java)
        Class.forName("com.mysql.cj.jdbc.Driver");

        // Step 2: Create Connection
        Connection con = DriverManager.getConnection(
                "jdbc:mysql://localhost:3306/testdb", "root", "password");

        // Step 3: Create Statement
        Statement stmt = con.createStatement();

        // Step 4: Execute Query
        ResultSet rs = stmt.executeQuery("SELECT * FROM users");

        // Step 5: Process Result
        while (rs.next()) {
            System.out.println(rs.getString("name"));
        }

        // Step 6: Close Connection
        con.close();
    }
}

? This example shows how Java connects to a database and retrieves data.

---

Why JDBC? (Problem It Solves)

Before JDBC

• Each database had its own API
• Code was not reusable
• Switching databases was difficult

Problems

• Tight coupling with a specific database
• More complexity in development
• Low portability

After JDBC (Solution)

• Provides a standard API for all databases
• Write once, connect to any database
• Easy to switch between databases

? JDBC solves the problem of database dependency and makes applications more flexible, portable, and scalable.

---

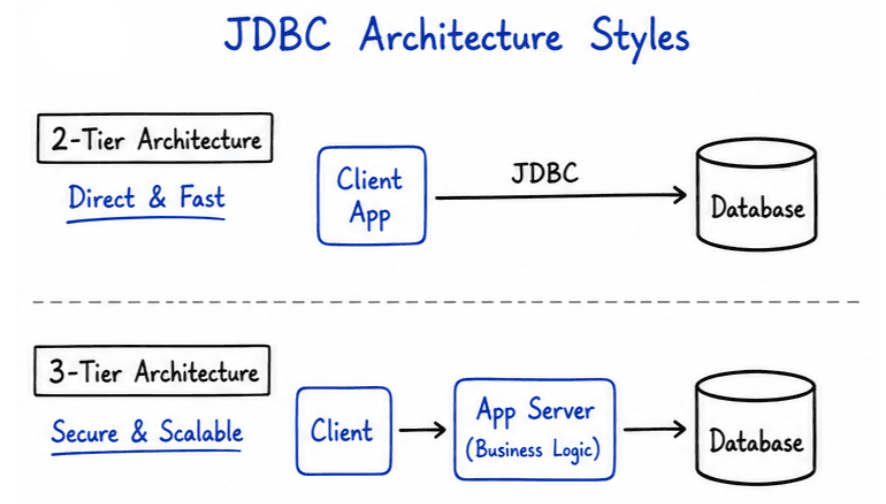

JDBC Architecture

JDBC architecture defines how communication happens between a Java application and a database.

It explains how data flows and how different layers interact in real-world applications.

1. Two-Tier Architecture

Direct communication between application and database

Flow:

Java Application → JDBC → Database

How it Works

• The Java application directly connects to the database
• JDBC API is used to send SQL queries
• Database processes the query and returns results

Advantages

• Simple and easy to understand
• Faster communication (no middle layer)
• Easy to implement

Disadvantages

• Not scalable for large applications
• Less secure (direct DB access)
• Hard to manage business logic

Example Use Case

• Small desktop applications
• Local tools or internal systems

? Used in simple applications where performance is more important than scalability.

2. Three-Tier Architecture

Uses a middle layer (Application Server)

Flow:

Client → Application Server → JDBC → Database

How it Works

• Client sends request to the application server
• Application server processes business logic
• JDBC is used to interact with the database
• Result is sent back to the client

Advantages

• More secure (no direct database access)
• Highly scalable
• Business logic is separated from UI
• Easier to maintain and update

Disadvantages

• More complex than 2-tier
• Slightly slower due to extra layer

Example Use Case

• Banking systems
• E-commerce websites
• Enterprise applications (Spring Boot APIs)

? Used in real-world applications where scalability, security, and maintainability are important.

---

Difference Between 2-Tier Architecture and 3-Tier Architecture

Feature	2-Tier Architecture	3-Tier Architecture
Definition	Direct connection between application and database	Uses a middle layer (application server) between client and database
Layers	2 layers (Application + Database)	3 layers (Client + Application Server + Database)
Flow	Java Application → JDBC → Database	Client → Application Server → JDBC → Database
Scalability	Low (not suitable for large systems)	High (supports large and complex applications)
Security	Less secure (direct DB access)	More secure (no direct DB access)
Performance	Faster (no middle layer)	Slightly slower (extra layer involved)
Maintenance	Difficult to manage in large apps	Easier due to separation of concerns
Business Logic	Mixed with application code	Handled in application server
Use Cases	Small desktop apps	Enterprise apps, web apps, APIs

---

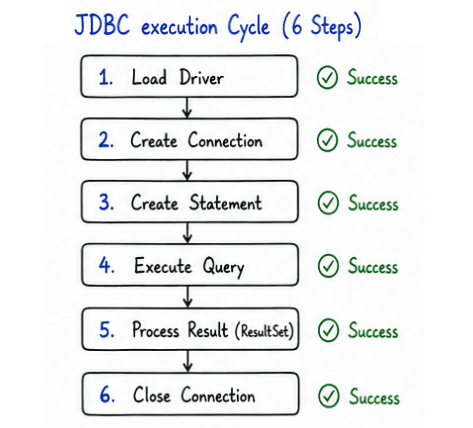

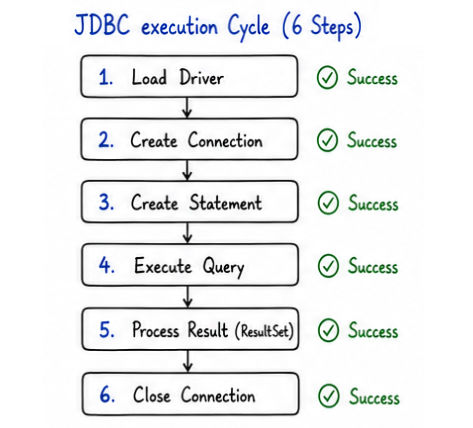

How JDBC Works (Step-by-Step Flow)

JDBC follows a structured process to interact with a database.

Each component plays an important role in establishing the connection and executing queries.

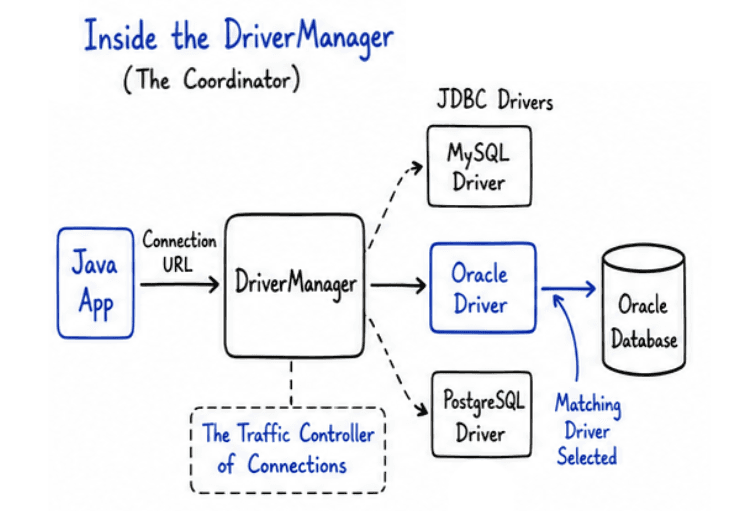

Flow Diagram

Java Application
        ↓
JDBC API
        ↓
DriverManager
        ↓
JDBC Driver
        ↓
Database

Step-by-Step Working

Step 1: Load Driver

• The JDBC driver is loaded into memory
• It helps Java understand how to communicate with the database

Example:

Class.forName("com.mysql.cj.jdbc.Driver");

Step 2: Create Connection

• Establish a connection between Java application and database
• Uses DriverManager

Example:

Connection con = DriverManager.getConnection(
    "jdbc:mysql://localhost:3306/testdb", "root", "password");

Step 3: Create Statement

Used to write and send SQL queries

Example:

Statement stmt = con.createStatement();

Step 4: Execute Query

• Send SQL query to the database
• Database processes the query

Example:

ResultSet rs = stmt.executeQuery("SELECT * FROM users");

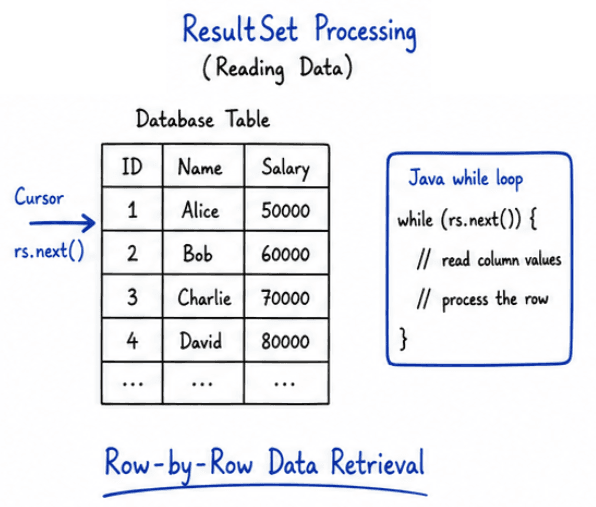

Step 5: Process Result

Retrieve and process data using ResultSet

Example:

while (rs.next()) {
    System.out.println(rs.getString("name"));
}

Step 6: Close Connection

Close connection to free resources

? Example:

con.close();

---

Simple Complete Example

import java.sql.*;

public class Demo {
    public static void main(String[] args) throws Exception {

        // Step 1: Load Driver
        Class.forName("com.mysql.cj.jdbc.Driver");

        // Step 2: Create Connection
        Connection con = DriverManager.getConnection(
                "jdbc:mysql://localhost:3306/testdb", "root", "password");

        // Step 3: Create Statement
        Statement stmt = con.createStatement();

        // Step 4: Execute Query
        ResultSet rs = stmt.executeQuery("SELECT * FROM users");

        // Step 5: Process Result
        while (rs.next()) {
            System.out.println(rs.getString("name"));
        }

        // Step 6: Close Connection
        con.close();
    }
}

---

Real-World Example Use Cases

JDBC is widely used in real applications such as:

• User login and registration systems
• Banking and financial applications
• E-commerce platforms
• Data management systems
• Backend APIs (Spring Boot, etc.)

---

Advantages of JDBC

• Standard API for database interaction
• Supports multiple database systems
• Flexible and scalable
• Easy integration with frameworks
• Enables data-driven applications

---

Limitations of JDBC

• Requires more boilerplate code
• Manual resource management
• Error handling can be complex
• Slower compared to ORM frameworks (like Hibernate)

---

Conclusion

JDBC is a core technology in Java that enables applications to interact with databases in a structured and efficient way.

• Provides a standard API for database communication
• Supports multiple databases and flexible architecture
• Works in both simple and enterprise-level applications

? Understanding JDBC API, architecture, and working flow is essential for building real-world backend systems and cracking Java interviews.
