UDP Communication (DatagramSocket)

UDP (User Datagram Protocol) is another important way of communication in Java Networking. It is a connectionless protocol and works faster than TCP but does not guarantee delivery of data. That is why it is used where speed is more important than reliability.

UDP sends data without establishing a connection and without confirming whether the data is received or not.

In this guide, you will learn what UDP is, how it differs from TCP, and how to build a simple UDP client-server program using DatagramSocket.

---

What is UDP?

UDP (User Datagram Protocol) is a connectionless communication protocol used for fast data transfer over a network in Java Networking.

In simple words: UDP sends data packets directly without establishing a connection and without checking whether the data reached safely or in order.

Example: Live video streaming or online gaming where speed is more important than perfect delivery.

Key Features of UDP

• Connectionless communication (no connection setup required)
• Faster than TCP due to minimal overhead
• No guarantee of data delivery (packets may be lost)
• No order of packets (data may arrive in different sequence)
• Lightweight protocol (uses fewer system resources)

? Because of these features, UDP is used where speed is more important than accuracy and reliability, such as real-time applications.

---

Simple UDP Programming Example (Practical)

UDP Server (Receiver)

import java.net.*;

public class UDPServer {
    public static void main(String[] args) {

        try {
            DatagramSocket socket = new DatagramSocket(5000);

            byte[] buffer = new byte[1024];

            DatagramPacket packet = new DatagramPacket(buffer, buffer.length);

            socket.receive(packet);

            String message = new String(
                    packet.getData(), 0, packet.getLength()
            );

            System.out.println("Client: " + message);

            socket.close();

        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

---

UDP Client (Sender)

import java.net.*;

public class UDPClient {
    public static void main(String[] args) {

        try {
            DatagramSocket socket = new DatagramSocket();

            String msg = "Hello Server";

            byte[] buffer = msg.getBytes();

            InetAddress address = InetAddress.getByName("localhost");

            DatagramPacket packet = new DatagramPacket(
                    buffer, buffer.length, address, 5000
            );

            socket.send(packet);

            socket.close();

        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

Explanation

• DatagramSocket → Used to start UDP communication
• DatagramPacket → Used to create and carry data for sending/receiving
• send() → Sends data to the receiver (server/client)
• receive() → Receives data from sender
• No connection setup required (direct communication)

---

Difference Between TCP vs UDP

Feature	TCP	UDP
Connection	Establishes connection before data transfer	Sends data without connection
Speed	Slower due to connection setup	Faster due to no setup
Reliability	Ensures delivery of data	No guarantee of delivery
Order of data	Data arrives in correct order	Data may arrive in any order
Overhead	High (extra checks & control)	Low (minimal processing)
Use case	Web browsing, banking, file transfer	Video streaming, online gaming, DNS

---

What is DatagramSocket?

DatagramSocket is a class in Java used to send and receive UDP packets.

? It works without a continuous connection between client and server.

• No fixed connection is required (connectionless communication)
• Data is sent in small units called datagrams
• Each packet is independent (may arrive or may not)

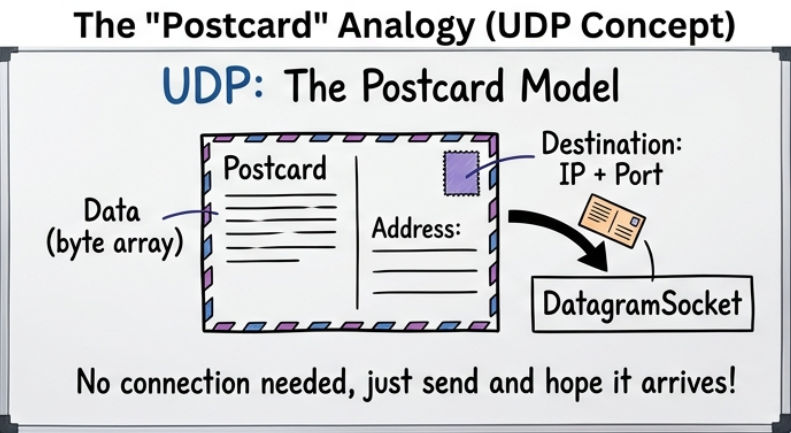

In simple words: It sends data like “postcards” — no guarantee of delivery or order.

Example (Basic UDP Sender)

import java.net.*;

public class UDPClient {
    public static void main(String[] args) throws Exception {

        DatagramSocket socket = new DatagramSocket();

        String message = "Hello Server";
        byte[] data = message.getBytes();

        InetAddress address = InetAddress.getByName("localhost");

        DatagramPacket packet = new DatagramPacket(
                data, data.length, address, 5000
        );

        socket.send(packet);

        System.out.println("Message sent");

        socket.close();
    }
}

Example (Basic UDP Receiver)

import java.net.*;

public class UDPServer {
    public static void main(String[] args) throws Exception {

        DatagramSocket socket = new DatagramSocket(5000);

        byte[] buffer = new byte[1024];

        DatagramPacket packet = new DatagramPacket(buffer, buffer.length);

        socket.receive(packet);

        String message = new String(
                packet.getData(), 0, packet.getLength()
        );

        System.out.println("Client says: " + message);

        socket.close();
    }
}

---

What is DatagramPacket?

DatagramPacket is used to store data that is sent or received in UDP communication.

? It acts like a container for data packets.

• UDP communication happens in the form of packets
• Each packet needs a structure to hold data + destination info
• DatagramPacket provides that structure

In simple words: It is like a box that carries data from sender to receiver

What Does It Contain?

A DatagramPacket stores:

• Data (byte array)
• Length of data
• Destination IP address (for sending)
• Destination port number (for sending)

? For receiving, it only stores:

• Incoming data
• Source information (sender IP + port)

Example (Sending Packet)

import java.net.*;

public class Sender {
    public static void main(String[] args) throws Exception {

        DatagramSocket socket = new DatagramSocket();

        String message = "Hello UDP Server";
        byte[] data = message.getBytes();

        InetAddress address = InetAddress.getByName("localhost");

        DatagramPacket packet = new DatagramPacket(
                data, data.length, address, 5000
        );

        socket.send(packet);

        socket.close();
    }
}

Example (Receiving Packet)

import java.net.*;

public class Receiver {
    public static void main(String[] args) throws Exception {

        DatagramSocket socket = new DatagramSocket(5000);

        byte[] buffer = new byte[1024];

        DatagramPacket packet = new DatagramPacket(buffer, buffer.length);

        socket.receive(packet);

        String message = new String(
                packet.getData(),
                0,
                packet.getLength()
        );

        System.out.println("Received: " + message);

        socket.close();
    }
}

---

UDP Communication Flow

UDP follows a simple flow for data transmission between sender and receiver.

Sender → Create Packet → Send via Socket
Receiver → Receive Packet → Read Data

? No connection setup is required before communication.

Explanation

• Sender side: Data is first converted into a DatagramPacket and then sent using DatagramSocket
• Receiver side: Server listens on a port and receives the packet using receive() method
• After receiving, data is extracted and processed

---

UDP Server Example (Receiving Data)

import java.net.*;

public class UDPServer {
    public static void main(String[] args) throws Exception {

        DatagramSocket socket = new DatagramSocket(5000);

        byte[] buffer = new byte[1024];

        DatagramPacket packet = new DatagramPacket(buffer, buffer.length);

        System.out.println("Server is waiting for data...");

        socket.receive(packet);

        String message = new String(packet.getData(), 0, packet.getLength());

        System.out.println("Received from client: " + message);

        socket.close();
    }
}

Explanation

• DatagramSocket(5000) → Creates server socket on port 5000 and listens for incoming UDP packets
• DatagramPacket → Stores incoming data from client
• receive() → Waits for data from client (blocking call)
• getData() → Extracts raw byte data from packet
• getLength() → Returns actual length of received message

---

UDP Client Example (Sending Data)

import java.net.*;

public class UDPClient {
    public static void main(String[] args) throws Exception {

        DatagramSocket socket = new DatagramSocket();

        String message = "Hello from UDP Client";

        byte[] buffer = message.getBytes();

        InetAddress address = InetAddress.getByName("localhost");

        DatagramPacket packet = new DatagramPacket(
                buffer,
                buffer.length,
                address,
                5000
        );

        socket.send(packet);

        System.out.println("Message sent to server");

        socket.close();
    }
}

Explanation

• DatagramSocket() → Creates client socket for sending UDP packets
• getBytes() → Converts string message into byte array
• InetAddress.getByName("localhost") → Defines server address
• DatagramPacket → Packs data along with destination IP and port number
• send() → Sends UDP packet to server

---

How UDP Communication Works

Step-by-step flow:

1. Client creates DatagramSocket
2. Client creates DatagramPacket with data
3. Client sends packet using send()
4. Server creates DatagramSocket on a port
5. Server creates buffer DatagramPacket
6. Server calls receive() and waits for packet
7. Server reads data from received packet
8. Connection ends (no session maintained)

---

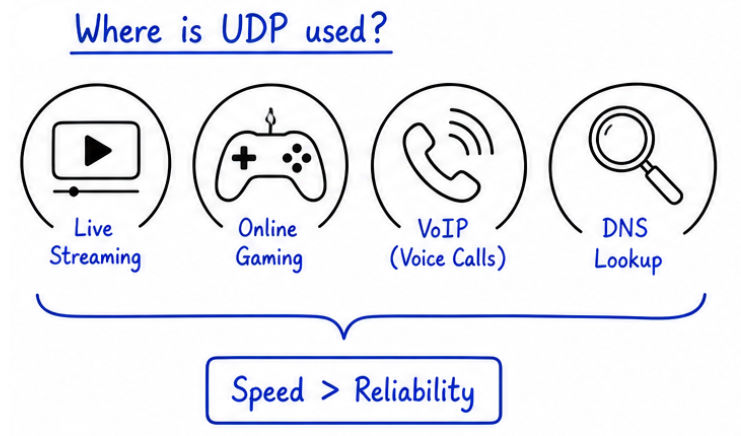

Real-World Use Cases of UDP

UDP is used in applications where speed and real-time communication are more important than guaranteed delivery:

• Online gaming (fast player actions and updates).
• Video streaming (live video/audio transmission).
• Live broadcasts (sports, events, live sessions).
• DNS (Domain Name System) lookups.
• Voice calls (VoIP services like internet calling).

---

Advantages of UDP

• Very fast communication (no connection setup delay).
• Low overhead (less processing compared to TCP).
• Simple protocol structure.
• Suitable for real-time applications.

---

Limitations of UDP

• No guaranteed delivery (packets may be lost).
• No order of packets (data may arrive in different sequence).
• No error recovery mechanism (lost data is not resent).
• Not suitable for critical applications like banking or transactions.

---

Common Mistakes to Avoid

• Assuming all sent data will always reach the receiver.
• Not handling packet loss in application logic.
• Using UDP for sensitive data applications.
• Incorrect IP address or port configuration.

---

Conclusion

UDP Communication in Java is a lightweight and fast way to transfer data between systems.

• Uses DatagramSocket for communication.
• Uses DatagramPacket for sending and receiving data.
• Does not establish a connection before data transfer.

? It is best suited for real-time applications where speed is more important than reliability.
