Establishing Database Connectivity in JDBC (Java)

Java applications need a proper setup to connect with databases. JDBC provides a standard way to establish this connection using drivers, database URLs, and credentials.

This guide explains environment setup, key interfaces, and the step-by-step connection process in a simple and practical way.

---

What is Database Connectivity in JDBC?

Database connectivity in JDBC means establishing a link between a Java application and a database so that SQL queries can be executed.

In simple words: It allows Java programs to communicate with databases like MySQL, Oracle, PostgreSQL, etc.

Example

Connection con = DriverManager.getConnection(
    "jdbc:mysql://localhost:3306/testdb",
    "root",
    "password"
);

? This line creates a connection between Java application and database.

---

Environment Setup (JAR & Classpath)

Before writing JDBC code, you must properly set up the environment. Without the correct setup, Java cannot connect to any database.

1. JDBC Driver JAR File

Every database requires its own JDBC driver to establish a connection.

Examples:

• MySQL → mysql-connector-j.jar
• Oracle → ojdbc.jar
• PostgreSQL → postgresql.jar

? These JAR files contain the implementation of JDBC APIs that allow Java to communicate with databases.

How it is used in a project

In a Java project, you need to add the JAR file so JDBC can work properly.

In IDE (Eclipse / IntelliJ): Add as External Library / Dependency

In Command Line:

javac -cp mysql-connector-j.jar Test.java

java -cp mysql-connector-j.jar Test

? This shows how the JAR file is included in the project to enable database connectivity.

---

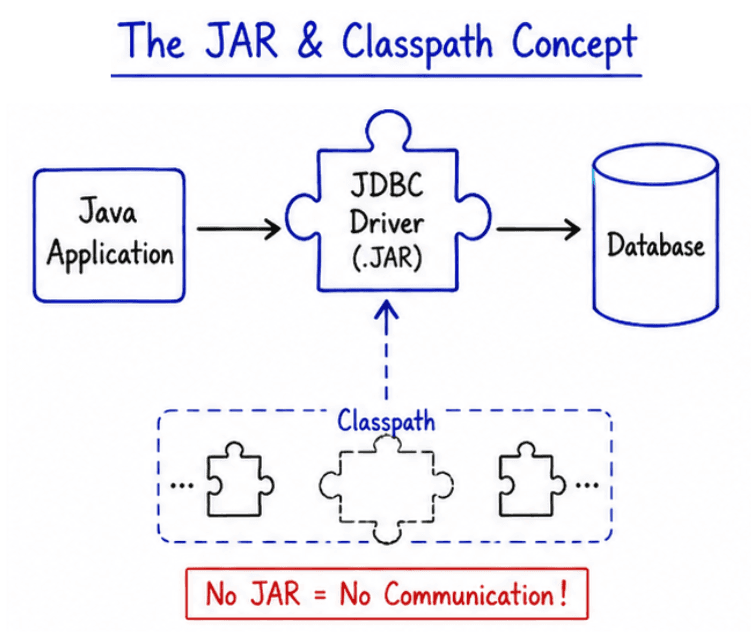

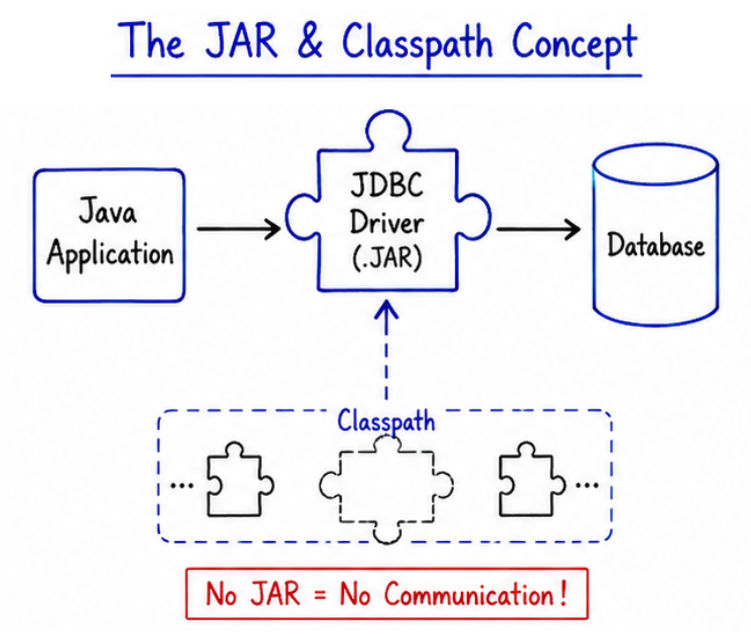

2. Adding JAR to Classpath

Java must know where the JDBC driver (JAR file) is located.

To make it work, we need to add the JAR file to the classpath.

Ways to Add JAR to Classpath

Option 1: Using IDE (Eclipse / IntelliJ)

• Right click on project
• Go to Build Path
• Click Add External JARs
• Select the JDBC driver file

? This makes the driver available for the project automatically.

Option 2: Using Command Line

javac -cp .;mysql-connector-j.jar Test.java

java -cp .;mysql-connector-j.jar Test

? This tells Java where to find the JDBC driver during compilation and execution.

---

DriverManager

DriverManager is the traditional way to create connections in JDBC.

? It is used to establish a connection between Java application and database using URL, username, and password.

Key Points

• Simple and easy to use
• Suitable for small applications
• Creates a new connection every time

Example

Connection con = DriverManager.getConnection(url, user, password);

Limitations

• No connection pooling (each request creates a new connection)
• Not efficient for large applications
• Can reduce performance in high-load systems

? In modern applications, DriverManager is still used, but connection pooling (DataSource) is preferred for better performance and scalability.

---

DataSource

DataSource is a modern and advanced way to create database connections in JDBC.

? It is mainly used in enterprise applications and frameworks like Spring because it provides better performance and connection management.

Key Points

• Supports connection pooling (reuses existing connections)
• Provides better performance than DriverManager
• Commonly used in enterprise applications (Spring, Java EE)
• Managed by application server or connection pool manager

Advantages

• Reusable connections (no need to create new connection every time)
• Faster performance in high-load applications
• Reduces database overhead
• Automatically manages connection lifecycle

Example

import javax.sql.DataSource;
import java.sql.Connection;

public class DataSourceExample {
    public static void main(String[] args) throws Exception {

        DataSource ds = getDataSource(); // assume configured DataSource

        Connection con = ds.getConnection();

        System.out.println("Connection created using DataSource");

        con.close();
    }

    public static DataSource getDataSource() {
        // configuration depends on framework/server
        return null;
    }
}

? In real-world applications, DataSource is preferred over DriverManager because it is more efficient, scalable, and production-ready.

---

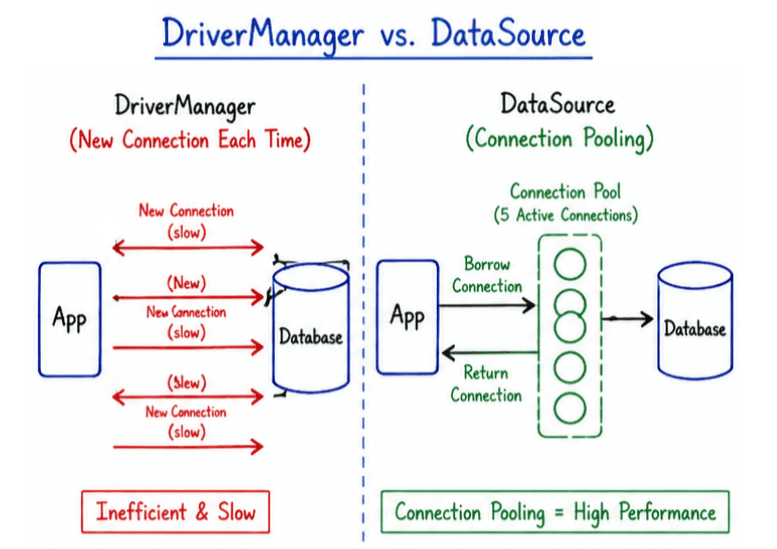

Difference Between DriverManager and DataSource

Feature	DriverManager	DataSource
Definition	Traditional way to create database connection	Modern way to manage database connections
Connection Creation	Creates a new connection every time	Uses connection pooling (reuses connections)
Performance	Slower in large applications	Faster due to reuse of connections
Scalability	Not suitable for large systems	Highly scalable
Connection Pooling	Not supported	Supported
Usage	Small applications, simple programs	Enterprise applications, Spring, Java EE
Management	Manually handled in code	Managed by application server or pool
Resource Usage	High (creates new connection each time)	Optimized and efficient

---

Connection Interface

The Connection interface is one of the most important parts of JDBC.

? It represents a live connection between a Java application and a database.

• Establishes connection with the database
• Creates SQL statements (Statement, PreparedStatement)
• Manages database transactions
• Closes the connection to free resources

Example

Connection con = DriverManager.getConnection(url, user, password);

• It is part of java.sql package
• Acts as a bridge between Java application and database
• Every JDBC operation starts with a Connection object
• Must be closed after use to avoid memory leaks

---

Database URL, Username, Password

To connect to a database, we need proper connection details such as URL, username, and password.

1. Database URL

The database URL defines the location and type of the database.

? It tells JDBC where the database is running and how to connect.

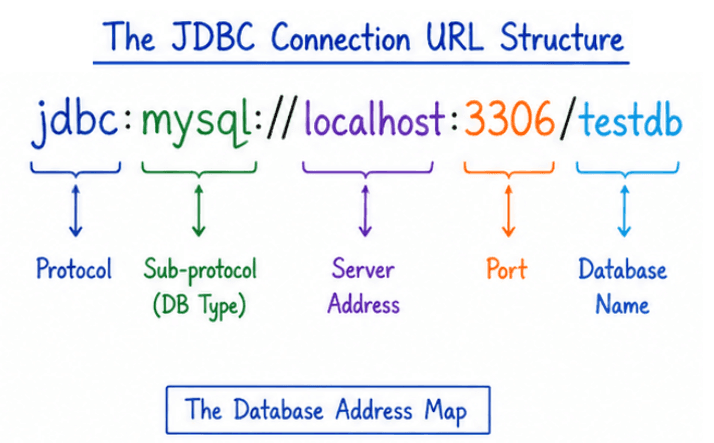

Format:

jdbc:subprotocol://host:port/database

Example (MySQL):

jdbc:mysql://localhost:3306/testdb

Here:

• localhost → server location
• 3306 → MySQL port
• testdb → database name

2. Username

The username is used to log in to the database.

Example:

root

3. Password

The password is used to authenticate the database user.

Example:

password123

Key Points

• URL, username, and password are required for JDBC connection
• They are passed to DriverManager.getConnection()
• Incorrect values will result in connection failure

? These three values are essential for establishing a successful JDBC database connection.

---

Steps to Connect JDBC

Now let’s understand the complete JDBC connection process step-by-step.

Step 1: Load Driver

In this step, the JDBC driver is loaded into memory so Java can use it for database communication.

Class.forName("com.mysql.cj.jdbc.Driver");

? This registers the driver with DriverManager.

Step 2: Get Connection

In this step, a connection is created between Java application and database.

Connection con = DriverManager.getConnection(
    "jdbc:mysql://localhost:3306/testdb",
    "root",
    "password"
);

? This establishes a live connection with the database.

Step 3: Basic Configuration (Optional)

After connection, you can configure important settings like:

• Auto-commit mode
• Transaction handling
• Isolation levels

Example:

con.setAutoCommit(true);

---

Complete JDBC Connection Example

import java.sql.*;

public class DBConnection {
    public static void main(String[] args) throws Exception {

        // Step 1: Load Driver
        Class.forName("com.mysql.cj.jdbc.Driver");

        // Step 2: Create Connection
        Connection con = DriverManager.getConnection(
                "jdbc:mysql://localhost:3306/testdb",
                "root",
                "password"
        );

        System.out.println("Database Connected Successfully!");

        // Step 3: Close Connection
        con.close();
    }
}

Output

Database Connected Successfully!

---

Common Mistakes to Avoid

• Missing JDBC JAR file in classpath
• Using incorrect database URL format
• Providing wrong username or password
• Not closing the database connection after use
• Using outdated JDBC drivers (Type 1 or Type 2)

---

Real-World Use Cases

JDBC connectivity is widely used in real-world Java applications, especially where data storage and retrieval are required.

• Login and Signup systems (user authentication)
• Banking applications (transactions and account management)
• E-commerce platforms (products, orders, and payments)
• REST APIs using Spring Boot (backend database operations)
• Data reporting and analytics systems

---

Conclusion

Establishing database connectivity is the first and most important step in JDBC programming.

• Proper environment setup ensures JDBC drivers are available
• DriverManager and DataSource help in managing database connections
• Connection interface handles communication between Java and database
• Correct configuration ensures stable, secure, and efficient systems

? Once you understand JDBC connectivity, you can easily build real-world backend applications, APIs, and database-driven systems in Java.
