JVM Architecture (Java Virtual Machine)

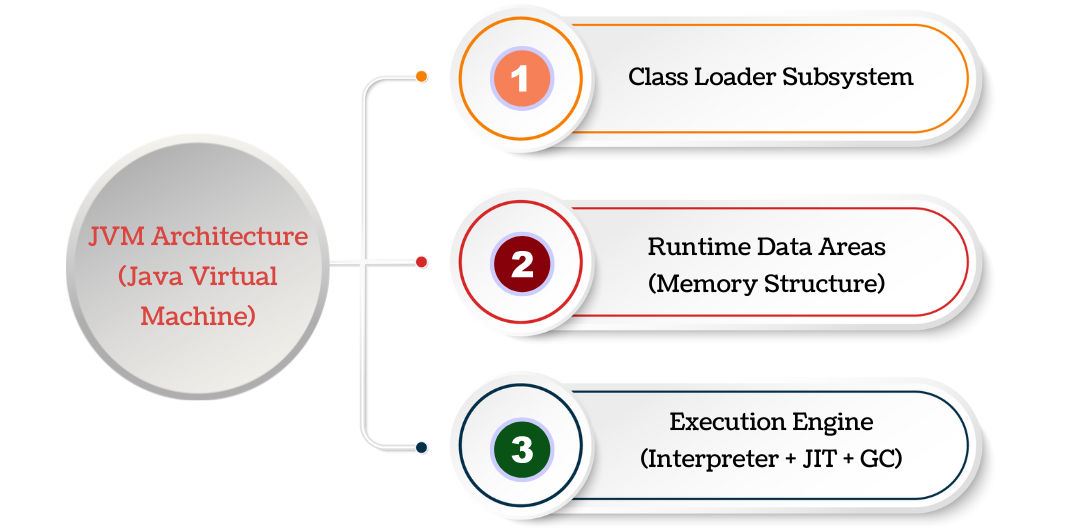

The Java Virtual Machine (JVM) Architecture defines how Java code is loaded, verified, executed, and managed in memory. It consists of three core components:

1. Class Loader Subsystem
2. Runtime Data Areas (Memory Structure)
3. Execution Engine (Interpreter + JIT + GC)

This architecture ensures Java’s platform independence, automatic memory management, and high performance.

---

1. Class Loader Subsystem

The Class Loader is responsible for loading Java classes into the JVM.

It loads .class (bytecode) files dynamically at runtime.

Key Responsibilities

• Loading classes into memory
• Verifying bytecode security
• Preparing memory for class variables
• Resolving references (links classes together)

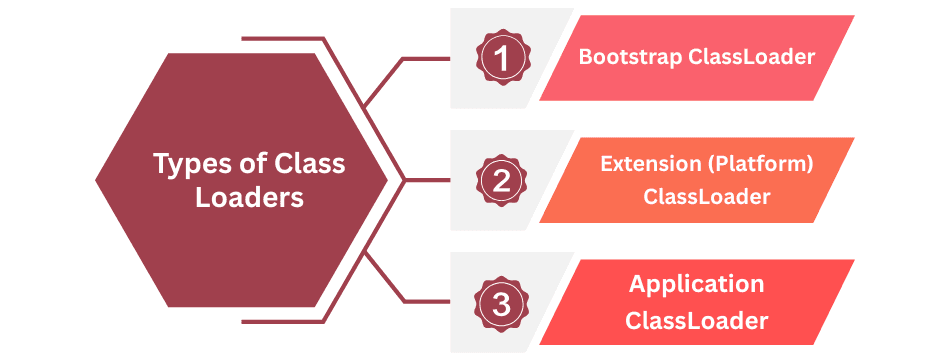

Types of Class Loaders

1. Bootstrap ClassLoader
   • Loads core Java classes (java.lang, java.util, etc.)
   • Part of native JVM code
   • No Java object representation
2. Extension (Platform) ClassLoader
   • Loads classes from JDK extensions
   • Example: jre/lib/ext/
3. Application ClassLoader
   • Loads application-level classes
   • Loads everything from the project’s classpath

Class Loading Steps

1. Loading – Reads .class file
2. Linking
   • Verification → Ensures bytecode safety
   • Preparation → Allocates memory for static fields
   • Resolution → Replaces symbolic references
3. Initialization
   • Executes static blocks
   • Initializes static variables

---

2. JVM Runtime Data Areas (Memory Structure)

JVM divides memory into different runtime areas where methods, objects, references, and instructions are stored.

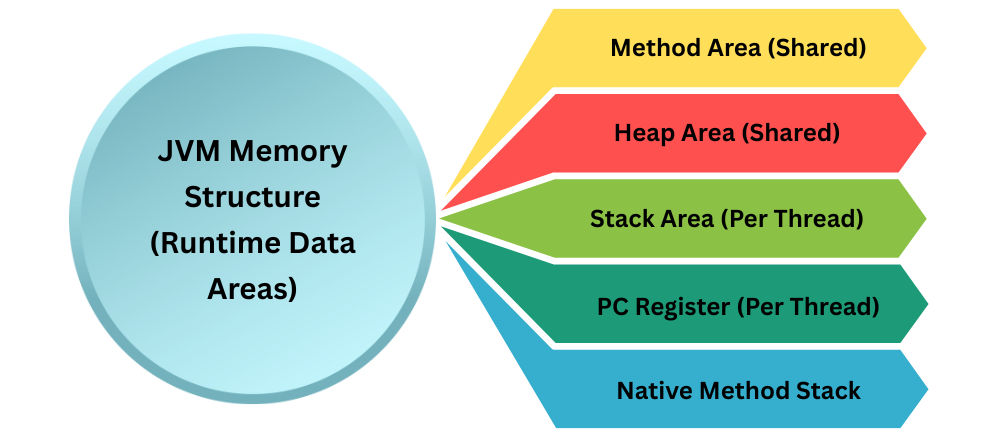

JVM Memory Structure

1. Method Area / MetaSpace (Shared)

Stores class-level information:

• Class metadata
• Static variables
• Method & constructor definitions
• Constant Pool

MetaSpace (JDK 8+) grows dynamically → reduces OutOfMemory errors.

---

2. Heap Area (Shared)

Stores:

• Objects
• Arrays
• Instance variables

Heap is divided into:

• Young Generation (Eden + Survivor S0/S1)
• Old Generation
• Metaspace (class metadata)

Managed by Garbage Collector.

---

3. JVM Stack (Per Thread)

Each thread has its own stack.

Stores:

• Method call frames
• Local variables
• Reference variables
• Return values

Follows LIFO (Last In First Out).

---

4. PC Register (Per Thread)

Stores:

• Address of the current instruction being executed

  Every Java thread has its own PC register.

---

5. Native Method Stack

Used for:

• Executing native code (C/C++ via JNI)
• OS-level operations

---

3. Execution Engine (How JVM Executes Code)

The Execution Engine is responsible for executing the loaded bytecode.

Components of Execution Engine

---

1. Interpreter

• Executes bytecode line-by-line
• Slower, but starts immediately
• Used for non-frequent code paths

---

2. JIT Compiler (Just-In-Time)

• Converts repeatedly executed bytecode → native machine code
• Improves overall performance
• Works with a HotSpot Profiler to find frequently executed methods (hotspots)

Output: Faster execution on the CPU.

---

3. Garbage Collector (GC)

Automatically cleans unused objects from Heap.

Uses algorithms like:

• Mark & Sweep
• G1 GC
• ZGC
• Shenandoah

Improves memory efficiency and reduces leaks.

---

4. Native Method Interface (JNI)

Allows Java to interact with:

• C/C++ libraries
• OS-level functions

---

Complete JVM Architecture (Summary Diagram)

             +-------------------------------+
             |        Class Loader            |
             +-------------------------------+
                | Loading | Linking | Init
                v
+-----------------------------------------------------+
|            JVM Runtime Data Areas                   |
|                                                     |
|  +------------+   +-------------------------------+ |
|  | Method     |   | Heap                         | |
|  | Area       |   | - Objects                    | |
|  +------------+   | - Arrays                     | |
|                   +-------------------------------+ |
|  +------------+   +-------------------------------+ |
|  | JVM Stack  |   | PC Register                  | |
|  +------------+   +-------------------------------+ |
|  +------------+                                     |
|  | Native     |                                     |
|  | Stack      |                                     |
|  +------------+                                     |
+-----------------------------------------------------+
                |
                v
       +-----------------------+
       |    Execution Engine   |
       | Interpreter           |
       | JIT Compiler          |
       | Garbage Collector     |
       +-----------------------+
                |
                v
              CPU / OS

---

Why JVM Architecture Matters

Understanding JVM internals helps in:

• Writing optimized, high-performance code
• Fixing memory leaks
• Understanding GC behaviour
• Improving multithreading & concurrency
• Performance tuning large applications
